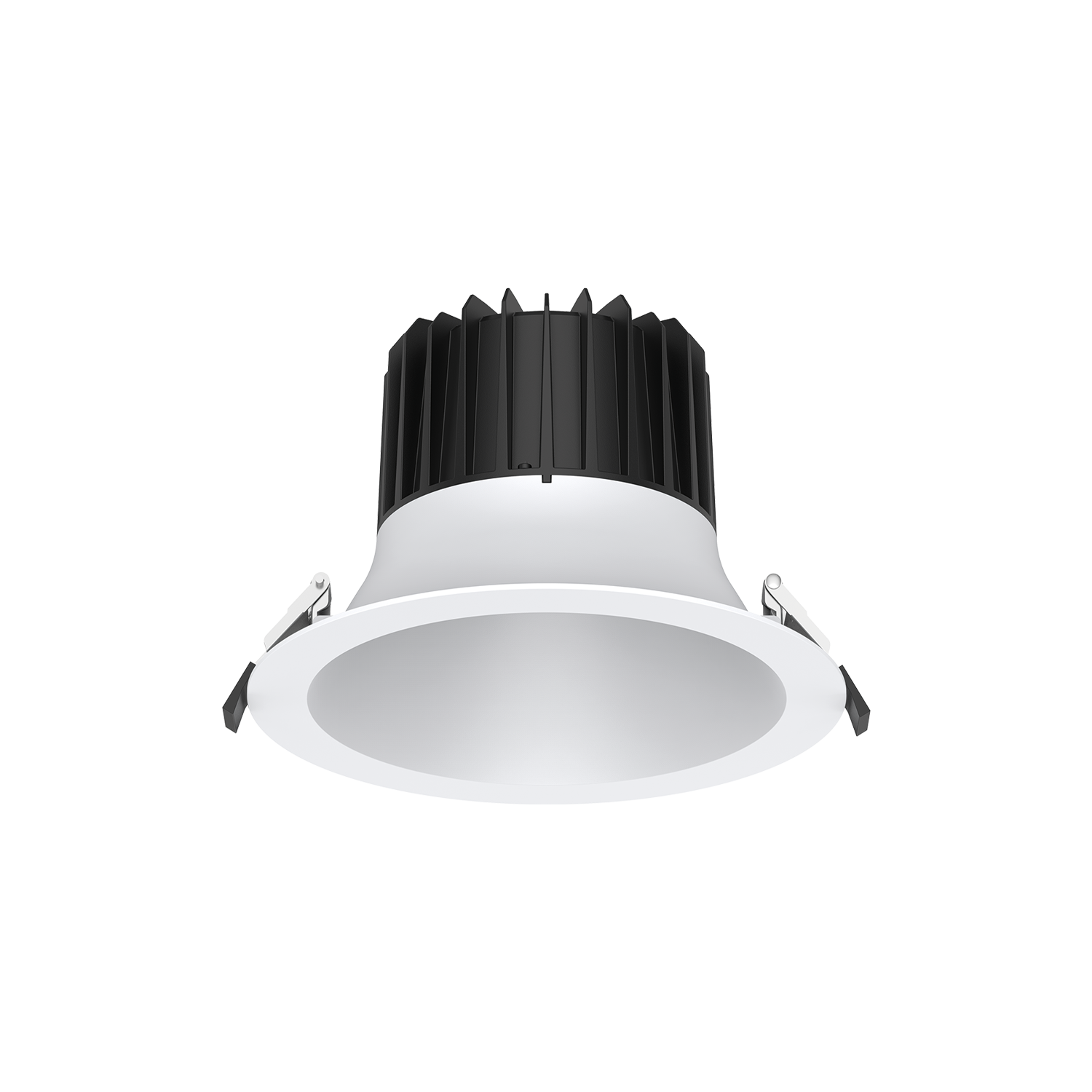

UGR<16 LOWGLARE COB LED SPOTLIGHT

GDL361 TC GDL362 TC GDL363 TC GDL364 TC GDL365 TC

Die-cast aluminium body
Powder coated finish
Triac dim LED driver included (not coverable)
Power factor: 0.9
Select colour temperature with DIP switch
Bridgelux COB LED chips
Colour matching 3 MacAdam steps
LED lifespan: 55000 hours @ L80 B10, Ta 25°C
Ta: -20°C to +40°C
Tri-colour
IP44
Non IC
Dimmable
UGR<16
Flex and plug
Double insulation
5-years warranty

MODEL

Clear selection

x

SKU: GDL36X TC Category: COMMERCIAL DOWNLIGHT Tags: IP40, UGR<16

Product Description

CODE

MODEL NO.	INPUT VOLTAGE (V)	POWER (W)	OUTPUT CURRENT (mA)	LUMEN (lm)	COLOUR TEMPERATURE (K)	CRI	R9	BEAM ANGLE (°)	FITTING COLOUR	CARTON QUANTITY
GDL361 TC WH	230	10	230	1020/1200/1116	3000/4000/5000	>90	>50	60	White	48
GDL362 TC WH	230	13	230	1326/1560/1451	3000/4000/5000	>90	>50	60	White	24
GDL363 TC WH	230	18	230	1836/2160/2009	3000/4000/5000	>90	>50	60	White	24
GDL364 TC WH	230	25	230	2550/3000/2790	3000/4000/5000	>90	>50	60	White	12
GDL365 TC WH	230	35	230	3570/4200/3906	3000/4000/5000	>90	>50	60	White	6

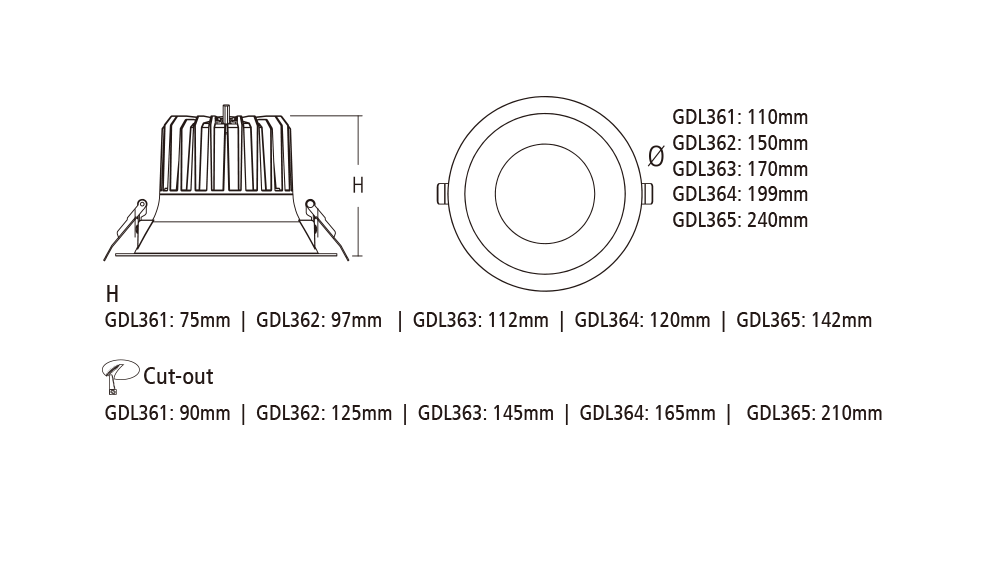

DIMENSIONS

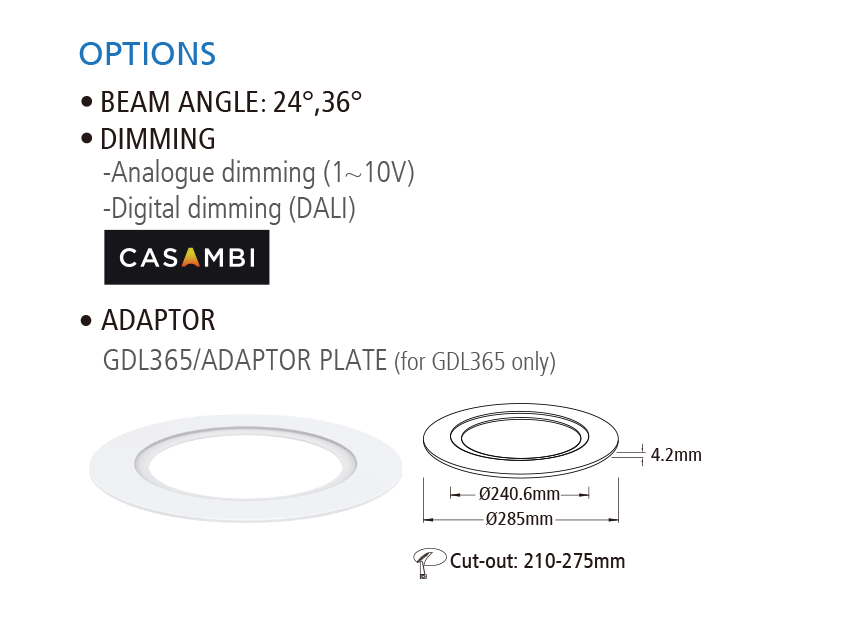

OPTIONS

DOWNLOADS

DATASHEET
GDL36X TC

SDOC
GDL36X

IES
GDL361 GDL362 363 364 365

INSTALLATION GUIDE
GDL36X

Product Specification

MODEL	GDL361 TC WH, GDL362 TC WH, GDL363 TC WH, GDL364 TC WH, GDL365 TC WH, GDL365/ADAPTOR PLATE
COLOR	WHITE
CUT OUT SIZE (Ø mm)	125, 145, 90, 165, 210
KEY FEATURES	DIMMING OPTION, HIGH CRI, UGR<16
INSTALLATION	RECESSED
INPUT	230V
WATTAGE (W)	10, 13, 18, 25, 35
LUMEN	1950, 2750, 1380, 3650, 810/860/950
COLOUR TEMPERATURE	3000/4000/5700
BEAM ANGLE (°)	60
FITTING COLOUR	WHITE
DIMMABLE	YES
CRI (>)	90
IP RATING	IP40
FLEX&PLUG	Flex&Plug
IC RATING	NON-IC
DOUBLE INSULATION	YES
LIGHT DIRECTION	FIXED
