MAC TC

MAC TC

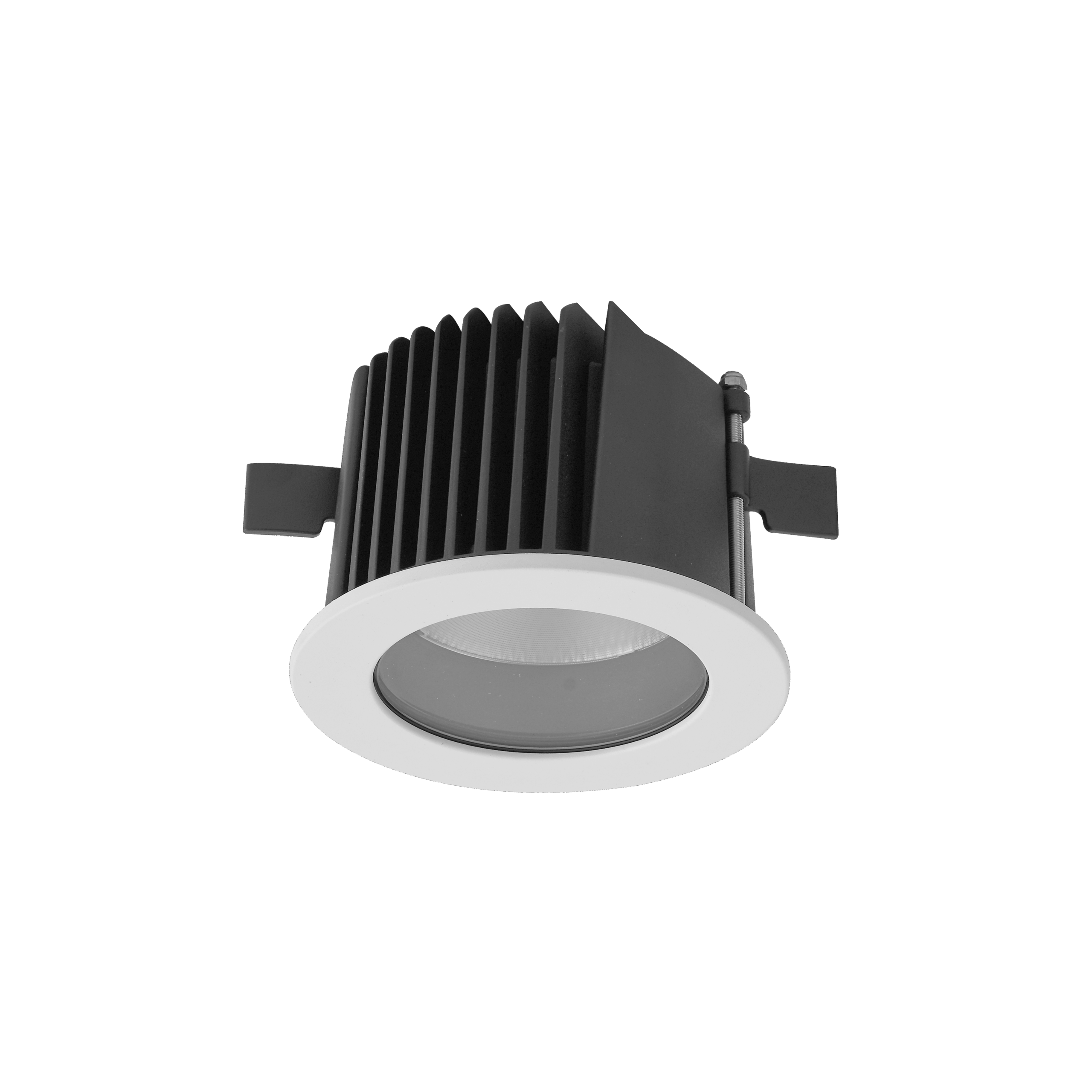

IP65 RECESSED LED DOWNLIGHT

A11511

Die-cast aluminium body
Powder coated finish in white RAL9003
Tempered glass cover
European brand LED driver included (not coverable)
Power factor: 0.9
Bridgelux COB LED chips
Colour matching 3 MacAdam steps
LED lifespan: 70000 hours @ L80 B10, Ta 25°C
Ta: -20°C to +40°C
IP65
IC-F
Flex&Plug
5-years warranty

Product Description

CODE

MODEL NO.	INPUT VOLTAGE （V）	POWER (W/m)	LUMEN (lm/m)	COLOUR TEMPERATURE(K)	CRI	R9	BEAM ANGLE (°）	FITTING COLOUR
A11511/15/TC/60°	230	15	1050/1100/1120	3000/3500/4000	>90	>50	60	White
A11511/25/TC/60°	230	25	2150/2200/2240	3000/3500/4000	>90	>50	60	White
A11511/35/TC/60°	230	35	3240/3300/3360	3000/3500/4000	>90	>50	60	White

MODEL NO.

INPUT

VOLTAGE
（V）

POWER

(W/m)

LUMEN

(lm/m)

COLOUR

TEMPERATURE(K)

CRI

BEAM ANGLE (°）

FITTING COLOUR

A11511/15/TC/60°

230

1050/1100/1120

3000/3500/4000

>90

>50

White

A11511/25/TC/60°

230

2150/2200/2240

3000/3500/4000

>90

>50

White

A11511/35/TC/60°

230

3240/3300/3360

3000/3500/4000

>90

>50

White

DIMENSIONS

OPTIONS

OPTIONS
• BEAM ANGLE: 15°, 24°, 38°
• DRIVER TYPE: Triac dim / DALI / Zigbee / Casambi / 0-10V

PHOTOMETRIC

DOWNLOADS

DATASHEET
A11511

SDOC
SDoc_A11511

IES
A11511

INSTALLATION GUIDE
A11511 Guide 01

A11511 Guide 02

Product Specification

MODEL	A11511/15/TC/60°, A11511/25/TC/60°, A11511/35/TC/60°
INSTALLATION	RECESSED
INPUT	230V
WATTAGE (W)	15, 25, 35
LUMEN	1050/1100/1120, 2150/2200/2240, 3240/3300/3360
COLOUR TEMPERATURE	3000/3500/4000
BEAM ANGLE (°)	60
FITTING COLOUR	WHITE
DIMMABLE	DALI/DSI, 0-10
CRI (>)	90
IP RATING	IP65
