CARMEL

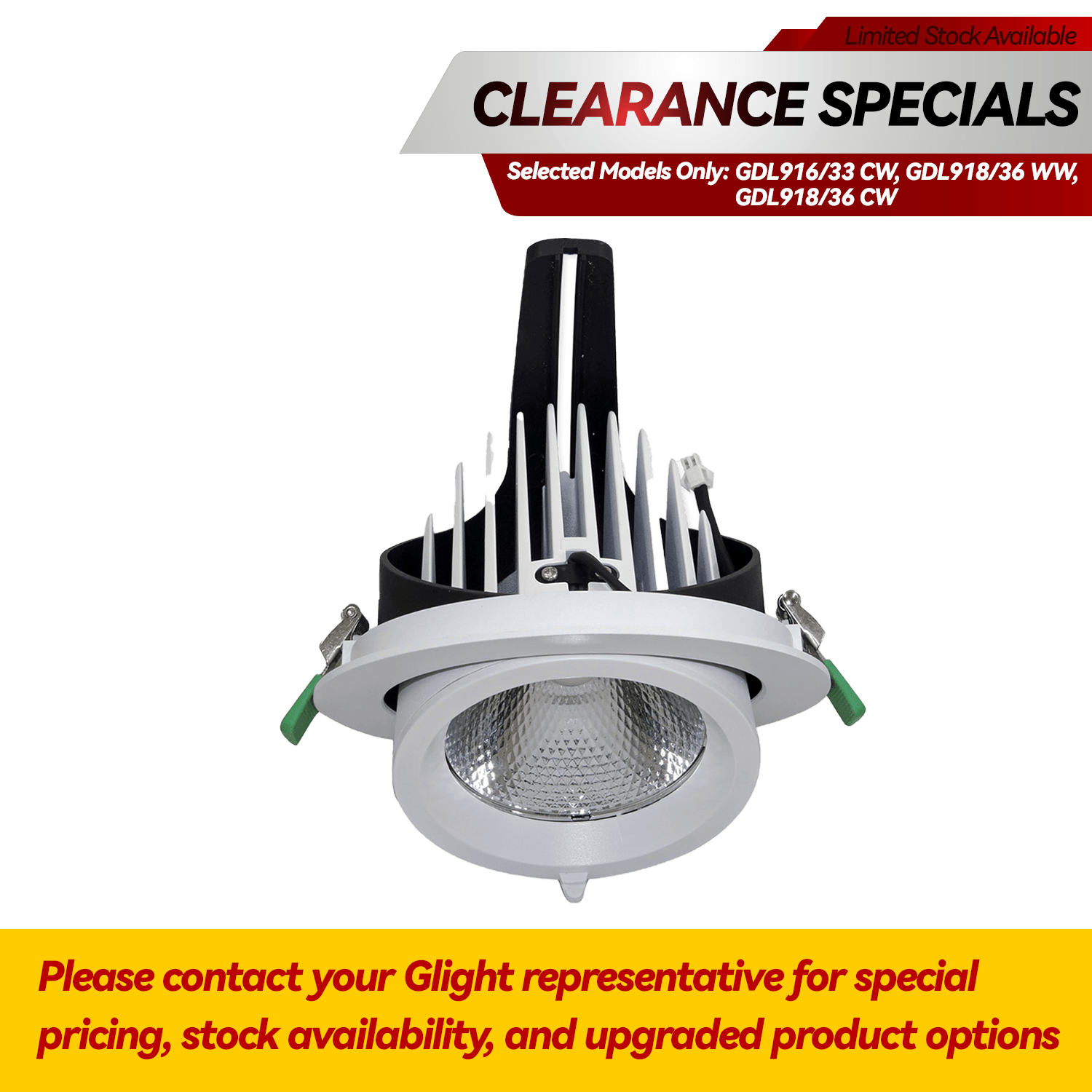

GIMBLE COB LED DOWNLIGHT

GDL914 GDL916 GDL918

Die-cast aluminium body
Powder coated finish
PC optical lens and reflector
LED driver included, pre-wired
Flex & plug included
Non-dimmable
IP20 suitable for indoor use only
Ta: -20 to 40°C
IC-F Rating: Abutted & Covered
Lifespan: 50,000 Hours @L70 Ta 25°C
3 year warranty
Double insulation

MODEL

Clear selection

x

SKU: GDL914/6/8 Category: COMMERCIAL DOWNLIGHT Tag: CRI>90

Product Description

CODE

MODEL	INPUT	POWER	LUMEN	COLOUR TEMPERATURE	CRI	BEAM ANGLE	DIMENSIONS(Ø×H)	CUT OUT SIZE(Ø)	FITTING COLOUR	CARTON QUANTITY
GDL914/24 WW	230V	24W	1920lm	3000K	>90	38°	140 x 114.5 mm	125 mm	White	18
GDL914/24 CW	230V	24W	2100lm	4000K	>90	38°	140 x 114.5 mm	125 mm	White	18
GDL916/33 WW	230V	33W	2447lm	3000K	>90	38°	158 x 130 mm	145 mm	White	12
GDL916/33 CW	230V	33W	2660lm	4000K	>90	38°	158 x 130 mm	145 mm	White	12
GDL918/36 WW	230V	36W	3700lm	3000K	>90	60°	188 x 159 mm	170 mm	White	8
GDL918/36 CW	230V	36W	3800lm	4000K	>90	60°	188 x 159 mm	170 mm	White	8

DIMENSIONS

OPTIONS

DIMMING:

Analogue dimming (trailing edge, 1-10V)

Digital dimming (DALI, DSI)

ADAPTER:

OVERVIEW

DOWNLOADS

DATASHEET
CARMEL GDL914/6/8

SDOC
CARMEL GDL914/6/8

IES
CARMEL GDL914 24 CW
CARMEL GDL914 24 WW
CARMEL GDL916 33 CW
CARMEL GDL916 33 WW
CARMEL GDL918 36 CW
CARMEL GDL918 36 WW

INSTALLATION GUIDE
CARMEL GDL914/6/8

Product Specification

MODEL	GDL914/24 WW, GDL914/24 WW IN ChCh, GDL914/24 CW, GDL914/24 CW IN ChCh, GDL916/33 WW, GDL916/33 WW IN ChCh, GDL916/33 CW, GDL916/33 CW IN ChCh, GDL918/36 WW, GDL918/36 CW, GDL918/ADAPTER PLATE
COLOR	BLACK, WHITE
CUT OUT SIZE (Ø mm)	125, 145, 170
KEY FEATURES	DIMMING OPTION, HIGH CRI
INSTALLATION	RECESSED
INPUT	230-240V(AC)
WATTAGE (W)	24, 33, 36
LUMEN	1920, 2100, 2447, 2660, 3700, 3800
COLOUR TEMPERATURE	COOL WHITE, WARM WHITE
BEAM ANGLE (°)	60, 38
FITTING COLOUR	WHITE
DIMMABLE	NO
CRI (>)	90
IP RATING	IP20
FLEX&PLUG	Flex&Plug
IC RATING	IC-F
DOUBLE INSULATION	YES
LIGHT DIRECTION	GIMBLE
GLARE CONTROL	Yes
