MERCURY RESIDENTIAL

IC-F DRIVER LED DOWNLIGHT
GDL851 TC GDL852 TC GDL853 TC

Die-cast aluminium body
Powder coated finish
Opal acrylic diffuser
Trailing edge dimmable driver included
Select colour temperature with DIP switch
Quick connect plug between driver and fitting
Flex & plug included
IP44
Ta: -20 to 40°C
IC-F Rating: Abutted & Covered
Lifespan: 50,000 Hours @L70 Ta 25°C
5 year warranty
Double insulation

MODEL

Clear selection

x

SKU: GDL85X Category: RESIDENTIAL DOWNLIGHT Tag: Tri-colour in 1

Product Description

CODE

MODEL	INPUT	POWER	LUMEN	COLOUR TEMPERATURE	BEAM ANGLE	CRI	DIMENSIONS(Ø×H)	CUT OUT SIZE(Ø)	FITTING COLOUR	CARTON QUANTITY
GDL851TC WH	230V	11W	1000/1100/1045lm	3000/4000/5700K	100°	>90	120 X 39 mm	100 mm	White	32
GDL851TC BK	230V	11W	1000/1100/1045lm	3000/4000/5700K	100°	>90	120 X 39 mm	100 mm	Black	32
GDL852TC WH	230V	12W	1200/1250/1250lm	3000/4000/5700K	100°	>90	150 X 35 mm	120 mm	White	32
GDL852TC BK	230V	12W	1200/1250/1250lm	3000/4000/5700K	100°	>90	150 X 35 mm	120 mm	Black	32
GDL853TC WH	230V	15W	1550/1700/1650lm	3000/4000/5700K	100°	>90	165 X 48 mm	140 mm	White	24
GDL853TC BK	230V	15W	1550/1700/1650lm	3000/4000/5700K	100°	>90	165 X 48 mm	140 mm	Black	24

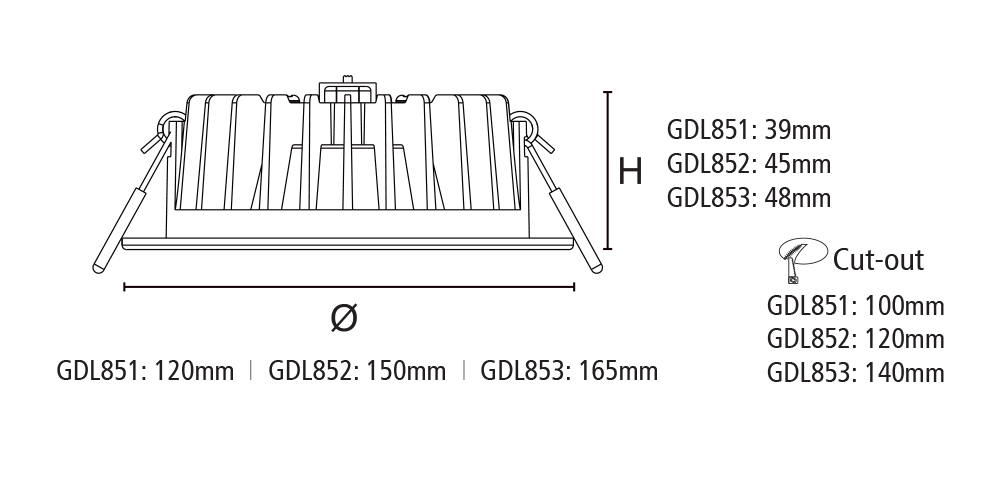

DIMENSIONS

OPTIONS

DIMMING

-Analogue dimming (1~10V)
-Digital dimming (DSI, DALI)

DOWNLOADS

DATASHEET
MERCURY GDL851/2/3 TC

SDOC
MERCURY GDL851/2 TC
MERCURY GDL853 TC

IES
GDL851 TC 3000K GDL851 TC 4000K GDL851 TC 5700K GDL852 TC 3000K GDL852 TC 4000K GDL852 TC 5700K GDL853 TC 3000K GDL853 TC 4000K GDL853 TC 5700K

INSTALLATION GUIDE
MERCURY GDL851/2/3 TC INSTALLATION GUIDE

Product Specification

MODEL	GDL851TC WH, GDL851TC WH IN ChCh, GDL851TC BK, GDL852TC WH, GDL852TC BK, GDL853TC WH, GDL853TC BK, GDL853TC WH IN HB, GDL853TC WH IN ChCh, GDL853TC BK IN ChCh
CUT OUT SIZE (Ø mm)	100, 120, 140
KEY FEATURES	DIMMING OPTION, IC-F DRIVER, TRI-COLOUR-IN-1
INSTALLATION	RECESSED
INPUT	230-240V(AC)
WATTAGE (W)	11, 12, 15
LUMEN	1000, 1045, 1100, 1200, 1250, 1550, 1650, 1700
COLOUR TEMPERATURE	TRI-COLOUR
BEAM ANGLE (°)	100
FITTING COLOUR	BLACK, WHITE
DIMMABLE	YES
CRI (>)	80
IP RATING	IP44
FLEX&PLUG	Flex&Plug
IC RATING	IC-F
DOUBLE INSULATION	YES
LIGHT DIRECTION	FIXED
ADD FEATURES	IC-F DRIVER
GLARE CONTROL	No
