TITIAN

TILTABLE PREMIUM LED SPOTLIGHT
A182

FIXED PREMIUM LED SPOTLIGHT
A172

Die-cast aluminium housing
Powder coated finish
Ultra modern deep recessed aluminium reflector
Sophisticated anti-glare design
AcTEC triac dim LED driver (not coverable)
Citizen 1202 LED chips
Colour matching 2 MacAdam steps
LED lifespan: 50000 hours @ L80 B20, Ta 25°C
Ta: -20°C to +50°C

MODEL

Clear selection

x

SKU: A182-A172 Categories: AVANTAS DOWNLIGHT, RESIDENTIAL DOWNLIGHT Tags: Dimmable, IC-F DRIVER, IP54, UGR<19

Product Description

CODE

MODEL NO.	INPUT VOLTAGE (V)	POWER (W)	LUMEN (lm)	COLOUR TEMPERATURE (K)	CRI	R9	BEAM ANGLE (°）	FITTING COLOUR
A172WH/11W/3K/60°	230	11	1005	3000	>90	>58	60	White
A172BK/11W/3K/60°	230	11	894	3000	>90	>58	60	Black
A182WH/11W/3K/60°	230	11	852	3000	>90	>58	60	White
A182BK/11W/3K/60°	230	11	693	3000	>90	>58	60	Black

DIMENSIONS

PHOTOMETRIC

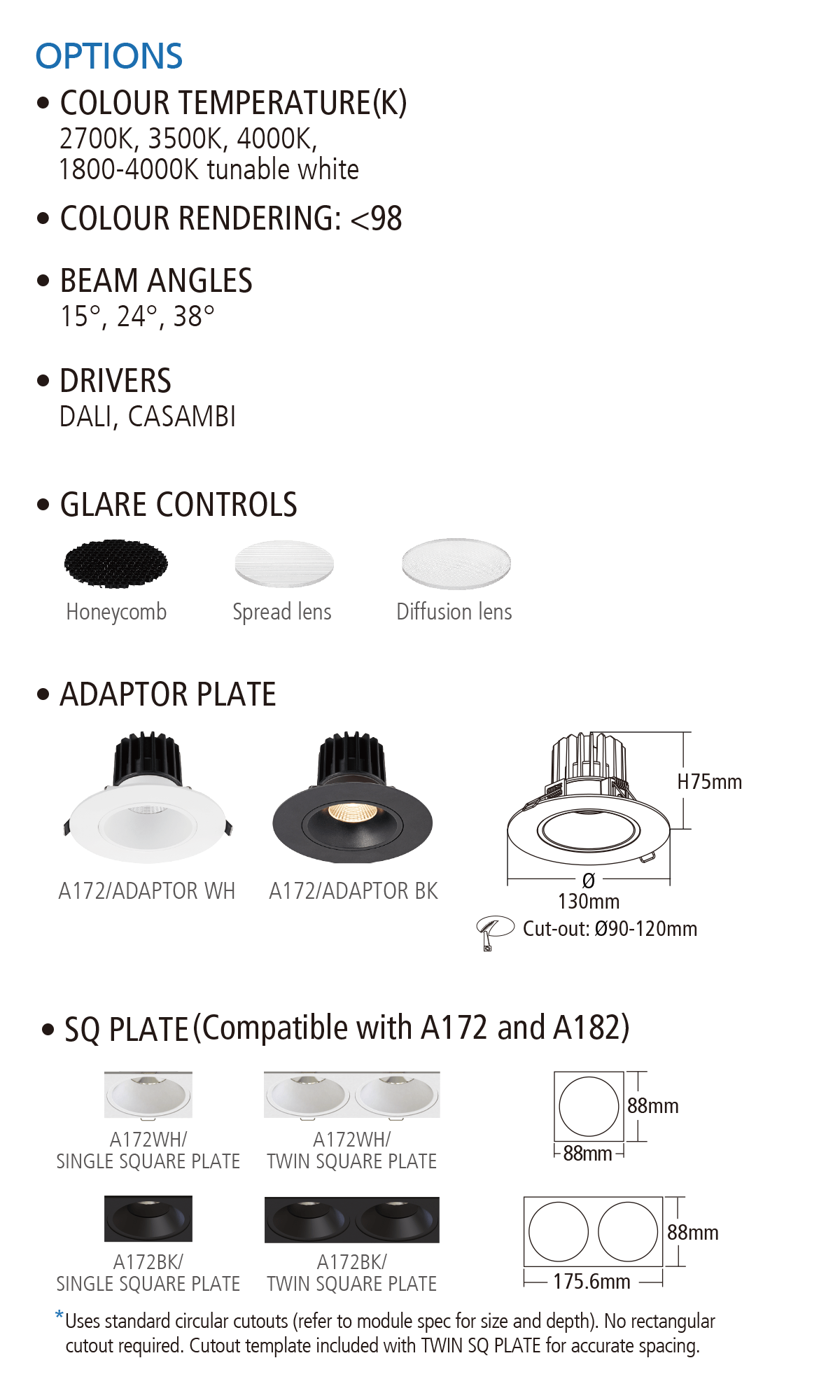

OPTIONS

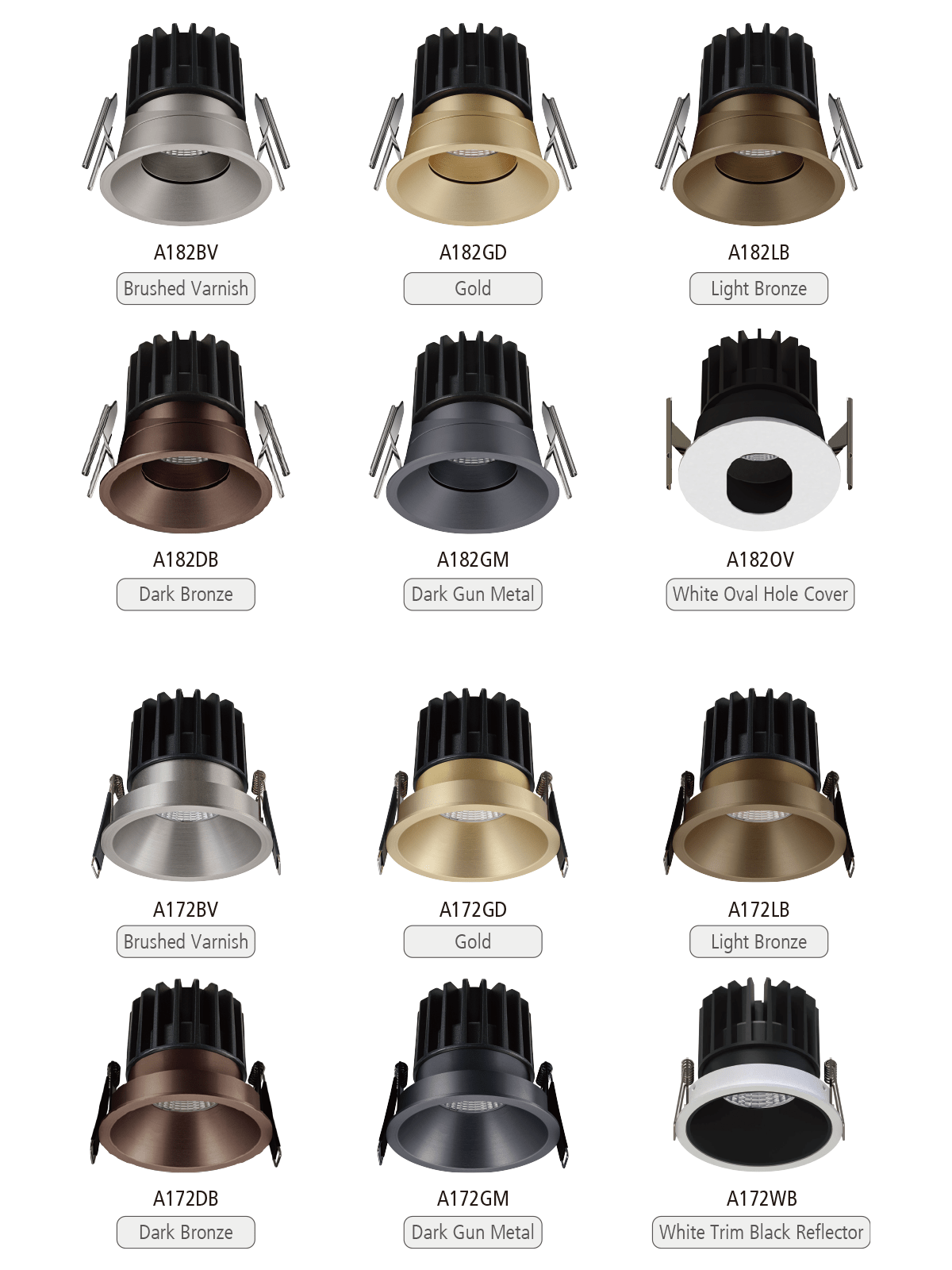

COLOUR OPTIONS

DOWNLOADS

DATASHEET
A182/172

SDOC
A182/172

IES
A182/172

INSTALLATION GUIDE
A182/172

Product Specification

MODEL	A172WH/11W/3K/60°, A172BK/11W/3K/60°, A172GD/11W/3K/60°, A172BV/11W/3K/60°, A172LB/11W/3K/60°, A172DB/11W/3K/60°, A172GM/11W/3K/60°, A182WH/11W/3K/60°, A182BK/11W/3K/60°, A182GD/11W/3K/60°, A182BV/11W/3K/60°, A182LB/11W/3K/60°, A182DB/11W/3K/60°, A182GM/11W/3K/60°, A172/ADAPTOR WH, A172/ADAPTOR BK, A172/HONEYCOMB, A172WH/TWIN SQ PLATE, A172BK/TWIN SQ PLATE
INPUT	230V
WATTAGE (W)	11
LUMEN	1005, 693, 852, 894
COLOUR TEMPERATURE	3000
BEAM ANGLE (°)	60
FITTING COLOUR	BLACK, WHITE
CRI (>)	90
IP RATING	IP54
DIMMABLE	YES
R9 (>)	58
