RAPHA

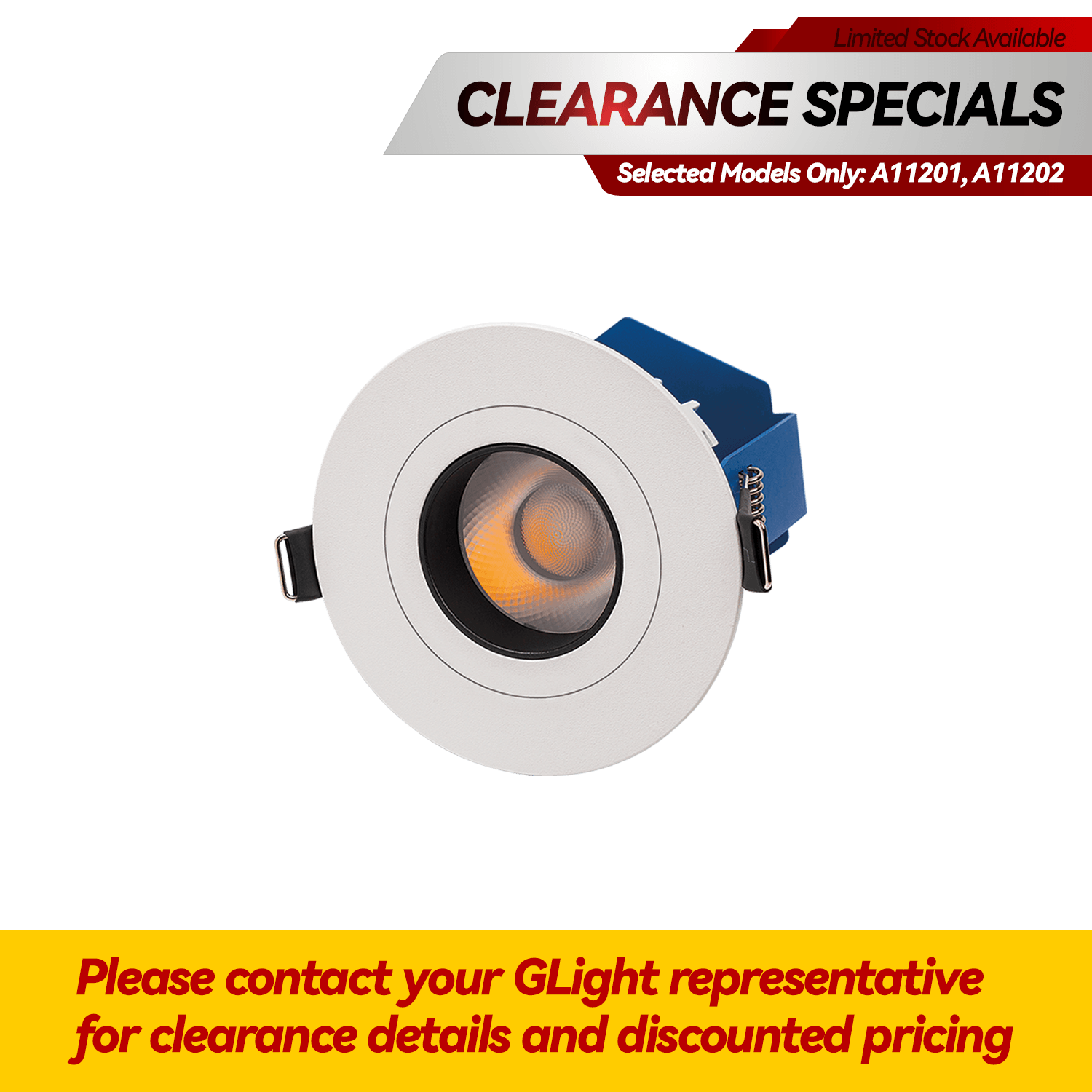

IP44 RECESSED LED DOWNLIGHT
x
Product Description
| MODEL | INPUT | POWER | LUMEN | COLOUR TEMPERATURE | CRI | BEAM ANGLE | DIMENSIONS (Ø×H) | CUT OUT SIZE (Ø) | FITTING COLOUR |
|---|---|---|---|---|---|---|---|---|---|
| A11201/15° | 230 | 10 | 900 | 3000 | >97 | 15 | 90×75 | 79 | White |
| A11201/25° | 230 | 10 | 900 | 3000 | >97 | 25 | 90×75 | 79 | White |
| A11201/38° | 230 | 10 | 900 | 3000 | >97 | 38 | 90×75 | 79 | White |
| A11201/60° | 230 | 10 | 900 | 3000 | >97 | 60 | 90×75 | 79 | White |
| A11202/15° | 230 | 10 | 900 | 3000 | >97 | 15 | 90×75 | 79 | Black |
| A11202/25° | 230 | 10 | 900 | 3000 | >97 | 25 | 90×75 | 79 | Black |
| A11202/38° | 230 | 10 | 900 | 3000 | >97 | 38 | 90×75 | 79 | Black |
| A11202/60° | 230 | 10 | 900 | 3000 | >97 | 60 | 90×75 | 79 | Black |
Product Specification
| MODEL | A11201/15°, A11201/25°, A11201/38°, A11201/60°, A11202/15°, A11202/25°, A11202/38°, A11202/60° |
|---|---|
| CUT OUT SIZE (Ø mm) | 79 |
| KEY FEATURES | HIGH CRI |
| INSTALLATION | RECESSED |
| INPUT | 230-240V(AC) |
| LUMEN | 900 |
| COLOUR TEMPERATURE | WARM WHITE |
| BEAM ANGLE (°) | 25, 60, 15, 38 |
| FITTING COLOUR | BLACK, WHITE |
| DIMMABLE | Trailing Edge |
| CRI (>) | 97 |
| IP RATING | IP44 |
| FLEX&PLUG | Flex |
| IC RATING | NON-IC |
| LIGHT DIRECTION | TILTABLE |
| GLARE CONTROL |
