MANSFIELD ROUND

TILTABLE COB LED DOWNLIGHT

GDL932


  • Die-cast aluminium body
  • Powder coated finish
  • LED driver included, pre-wired
  • PC reflector and tempered glass cover
  • Dual wattage
  • Flex & plug included
  • Non-dimmable
  • IP20 suitable for indoor use only
  • Ta: -20 to 40°C
  • NON-IC Rating
  • Lifespan: 50,000 Hours @L70 Ta 25°C
  • 5 year warranty
  • Double insulation

x
SKU: GDL932 Category: Tag:

Product Description

MODEL INPUT POWER LUMEN COLOUR TEMPERATURE BEAM ANGLE CRI DIMENSIONS(Ø×H) CUT OUT SIZE(Ø) FITTING COLOUR CARTON QUANTITY
GDL932/35 CW WH 230V 20/35W 2750/3850lm 4000K 36° >90 180 x 110mm 150mm White 18

• DIMMING:
Analogue dimming (trailing edge, 1-10V)
Digital dimming (DALI, DSI)
• BEAM ANGLE: 15°, 24°
• FITTING COLOUR: Black

DATASHEET
GDL932

SDOC
COMING SOON

IES
COMING SOON

INSTALLATION GUIDE
GDL932

Product Specification

COLOR

WHITE

MODEL

GDL932/35 CW WH

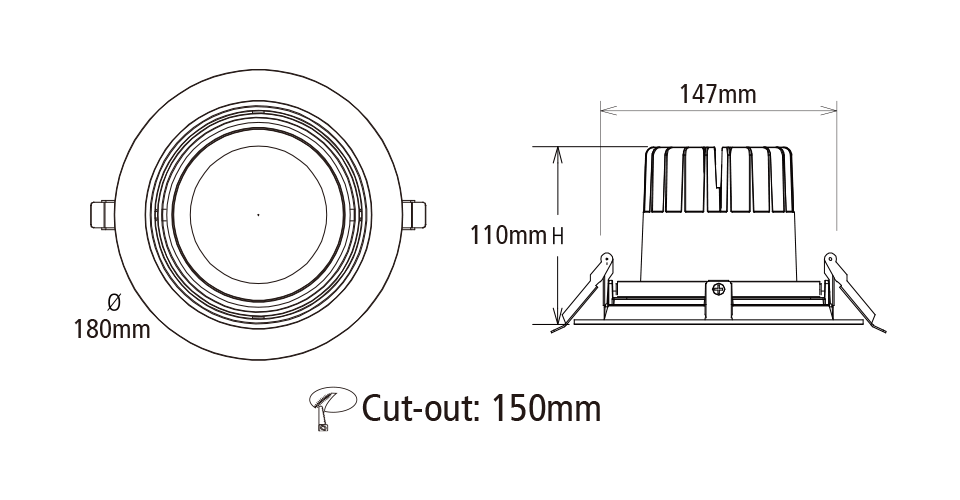

CUT OUT SIZE (Ø mm)

150

KEY FEATURES

ADJUSTABLE WATTAGE, DIMMING OPTION, HIGH CRI

INSTALLATION

RECESSED

INPUT

230-240V(AC)

WATTAGE (W)

25, 35

LUMEN

2750, 3850

COLOUR TEMPERATURE

COOL WHITE

BEAM ANGLE (°)

36

FITTING COLOUR

WHITE

DIMMABLE

NO

CRI (>)

90

IP RATING

IP20

FLEX&PLUG

Flex&Plug

IC RATING

NON-IC

DOUBLE INSULATION

YES

LIGHT DIRECTION

TILTABLE

GLARE CONTROL
