PHOENIX II

MULTIPLE FUNCTIONAL PREMIUM LED BATTEN
GBT513


  • Robust steel housing
  • Powder coated finish in white (RAL9003)
  • Opal polycarbonate diffuser
  • European brand constant current LED driver fitted
  • Power factor: 0.9
  • Select wattage with DIP switch
  • Samsung high efficiency LED chips 150lm/W @ 4000K
  • Colour matching 6 MacAdam steps
  • LED lifespan: 55000 hours @ L80 B10, Ta 25° C
  • Ta: -20°C to +45°C

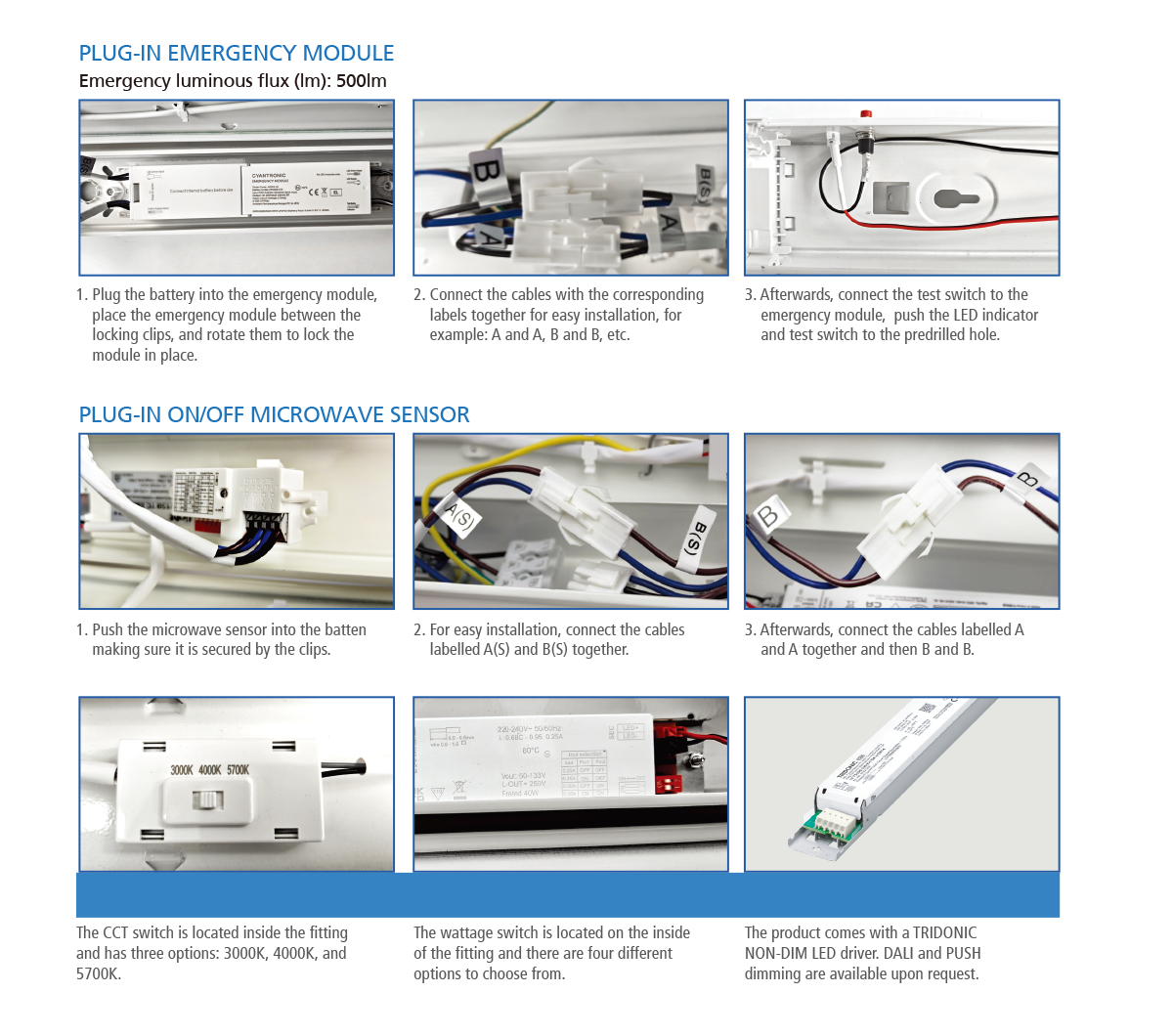

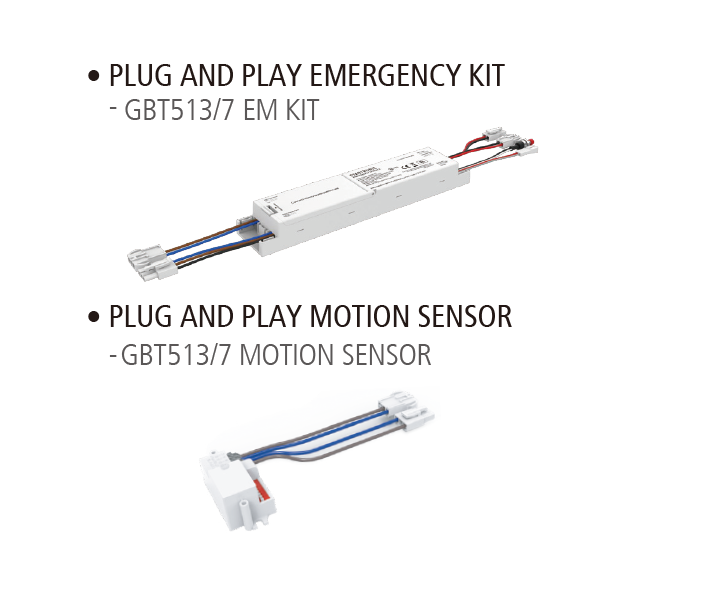

  • EMERGENCY

  • Intelligent automatic recharging function
  • Compliant to AS/NZS 2293
  • Constant current mode
  • 3 hour emergency operation
  • Output wattage 2.5W
  • Over-discharge protection
  • LED charge status display
  • Test switch with self-test function
  • Ta: 0°C to +40°C
x
SKU: GBT513 Category: Tags: , ,

Product Description

Product Specification

MODEL

GBT513/60 TC, GBT513/120 TC, GBT513/150 TC, GBT513/150 TC, GBT513/SENSOR, GBT513/ EMERGENCY

KEY FEATURES

TRI-COLOUR-IN-1

INPUT

230V

WATTAGE (W)

18/21/25/30, 24/29/35/40, 9/11/13/15

LUMEN

2250, 4500, 6000

COLOUR TEMPERATURE

3000/4000/6000

DIMMABLE

NO

CRI (>)

80

IP RATING

IP20

IK RATING

IK08
