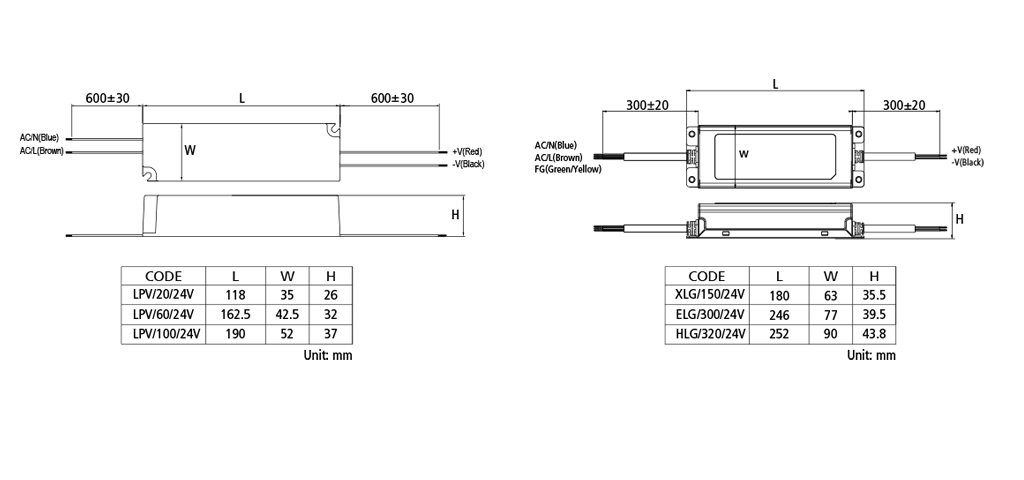

| MODEL NO. | INPUT VOLTAGE (V) | MAX OUTPUT POWER (W) | OUTPUT VOLTAGE (V) | OUTPUT CURRENT (A) | POWER FACTOR | Ta (°C) | DIMENSIONS (L×W×H) |
|---|---|---|---|---|---|---|---|
| LPV/20/24V | 230 | 20 | 24 | 0-0.84A | 0.9 | -30 to +70°C | 118 x 35 x 26 mm |
| LPV/60/24V | 230 | 60 | 24 | 0-2.5A | 0.9 | -30 to +70°C | 162.5 x 42.5 x 32 mm |
| LPV/100/24V | 230 | 100 | 24 | 0-4.2A | 0.9 | -30 to +70°C | 190 x 52 x 37 mm |
| XLG/150/24V | 230 | 150 | 24 | 3.2-6.25A | 0.95 | -40 to +90°C | 180 x 63 x 35.5 mm |
| ELG/300/24V | 230 | 300 | 24 | 6.25-12.5A | 0.93 | -40 to +85°C | 246 x 77 x 39.5 mm |
| HLG/320/24V | 230 | 320 | 24 | 6.67-13.34A | 0.95 | -40 to +90°C | 252 x 90 x 43.8 mm |
| MODEL | LPV-20-24, LPV-60-24, LPV-100-24, XLG/150/24V, HLG/320/24V |
|---|---|
| INPUT | 230-240V(AC) |
| WATTAGE (W) | 100, 150, 20, 300, 60, 320 |
| DIMMABLE | NO |
| IP RATING | IP67 |
| FLEX&PLUG | Flex |
| OUTPUT VOLTAGE | 24V (DC) |
