PLUTO DIM-CONSTANT CURRENT

PLUTO DIM-CONSTANT CURRENT - Image 2

PLUTO DIM-CONSTANT CURRENT - Image 3

PLUTO DIM-CONSTANT CURRENT - Image 4

PLUTO DIM-CONSTANT CURRENT - Image 5

PLUTO DIM-CONSTANT CURRENT - Image 6

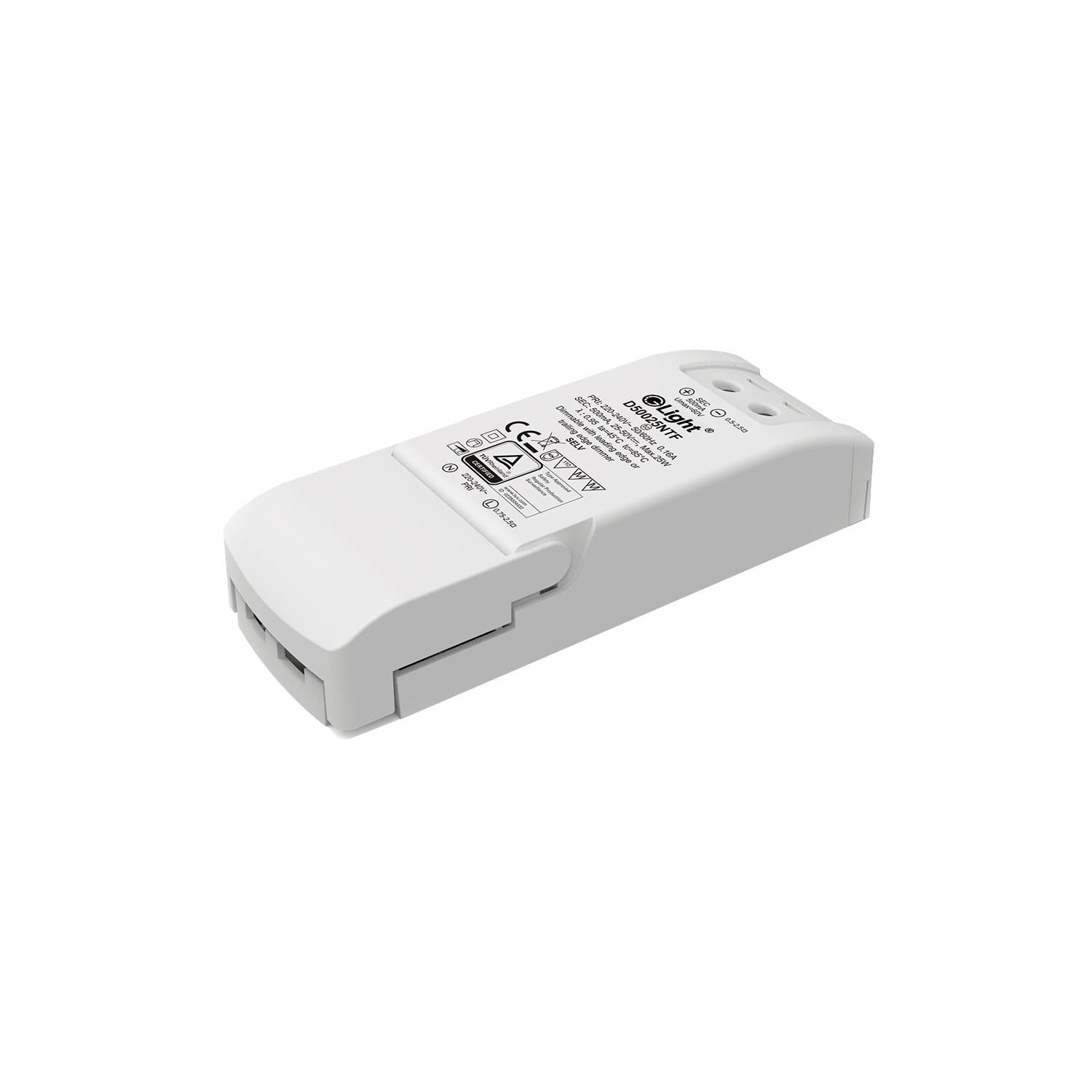

PLUTO DIM-CONSTANT CURRENT

DIMMABLE CONSTANT CURRENT LED DRIVER
PLUTO DIM-CONSTANT CURRENT

Independent compact design
Captured terminal screws
Wide output voltage extended down to 50%
Protections: open-circuit, short-circuit, overload, over-temperature
SELV (Safety extra low voltage) output
Dimmable with leading edge or trailing edge dimmer
Dimming range from 1% ~ 100%
IP20 indoor use only
3-year warranty

MODEL

Clear selection

x

SKU: GDIM-CONSTANT CURRENT Category: DRIVER & ACCESSORY Tag: IP20

Product Description

CODE

MODEL NO.	INPUT VOLTAGE (V)	MAX OUTPUT POWER (W)	OUTPUT CURRENT (mA)	OUTPUT VOLTAGE (V)	POWER FACTOR	Ta
GDIM500mA/25W	230	25W	500	25-50	0.95	-20 to +50°C
GDIM700mA/40W	230	40W	700	28-56	0.95	-20 to +50°C
GDIM850mA/45W	230	45W	850	27-53	0.95	-20 to +50°C
GDIM1050mA/50W	230	50W	1050	24-48	0.95	-20 to +50°C

DIMENSIONS

WIRING DIAGRAM

DOWNLOADS

DATASHEET
PLUTO DIM

SDOC
COMING SOON

INSTALLATION GUIDE
COMING SOON

Product Specification

MODEL	DIM500mA/25W, DIM700mA/40W, DIM850mA/45W, DIM1050mA/50W
IP RATING	IP20
WATTAGE (W)	25, 40, 45, 50
