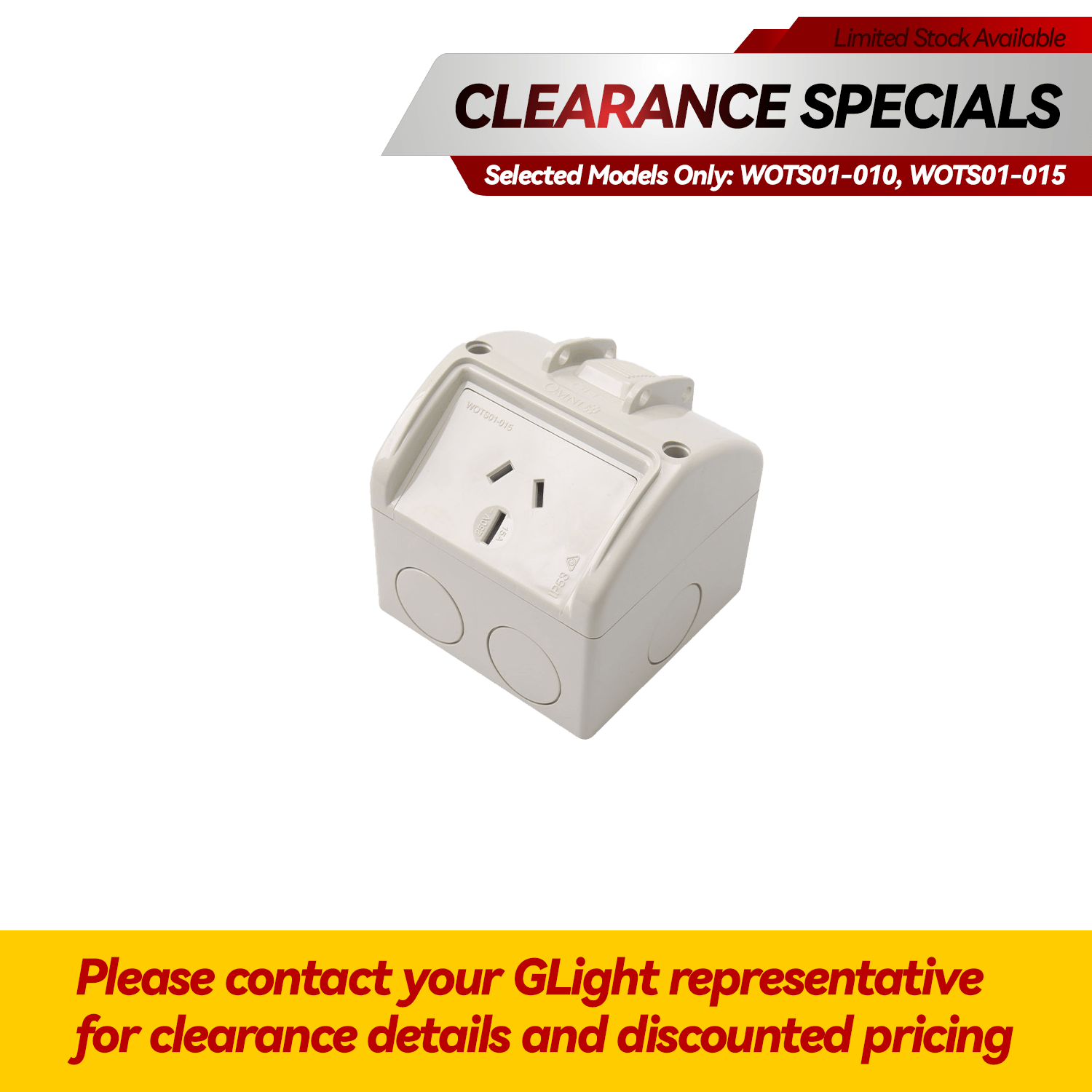

WEATHERPROOF OUTLET
x
Product Description
| MODEL | RATED VOLTAGE (V) |
MAX CURRENT (A) |
TYPE | SUITABLE CABLE CONDUCTOR | IP | DIMENSIONS (Ø×H)/(L×W×H) (mm) |
CARTON QUANTITY |
|---|---|---|---|---|---|---|---|
| WOTS01-010 | 250V | 10 | Weatherproof socket outlet single switched | 1.0 – 2.5 mm² solid or stranded | 53 | 85 x 85 x 44.6 | 10 |
| WOTS01-015 | 250V | 15 | Weatherproof socket outlet single switched | 1.0 – 2.5 mm² solid or stranded | 53 | 85 x 85 x 44.6 | 10 |
| WOTD02-010 | 250V | 10 | Weatherproof socket outlet single switched | 1.0 – 2.5 mm² solid or stranded | 53 | 85 x 115 x 44.6 | 10 |
Product Specification
| MODEL | WOTS01-010, WOTS01-015, WOTD02-010 |
|---|---|
| IP RATING | IP53 |
