WATERPROOF CONNECTOR

FEED CABLE/EXTENSION CABLE/SPOT SOCKET

Plug and socket connector system
High-quality nylon housing
Copper contacts with nickel and gold plating for stable conductivity
Tinned copper conductor for enhanced corrosion resistance
VDE standard rubber cable, durable and flexible
Long service life: ≥3000 mating cycles
Ta: -40°C to +50°C
IP67

MODEL

Clear selection

x

SKU: GCC Category: INGROUND & GARDEN LIGHT Tag: IP67

Product Description

CODE

MODEL NO.	INPUT VOLTAGE (V)	MAX CURRENT (A)	DIELECTRIC VOLTAGE (V)	POLES	CABLE
GCC/2M FEED CABLE	230	15	2000	2	VDE standard rubber, 2 × 1.5 mm², black, Ø 9.2mm, length 2 metres
GCC/10M FEED CABLE	230	15	2000	2	VDE standard rubber, 2 × 1.5 mm², black, Ø 9.2mm, length 10 metres
GCC/2M EXTENSION CABLE	230	15	2000	2	VDE standard rubber, 2 × 1.5 mm², black, Ø 9.2mm, length 2 metres
GCC/5M EXTENSION CABLE	230	15	2000	2	VDE standard rubber, 2 × 1.5 mm², black, Ø 9.2mm, length 5 metres
GCC/10M EXTENSION CABLE	230	15	2000	2	VDE standard rubber, 2 × 1.5 mm², black, Ø 9.2mm, length 10 metres
GCC/2WAY SPOT SOCKET	230	15	2000	2	VDE standard rubber, 2 × 1.5 mm², black, Ø 9.2mm
GCC/3WAY SPOT SOCKET	230	15	2000	2	VDE standard rubber, 2 × 1.5 mm², black, Ø 9.2mm

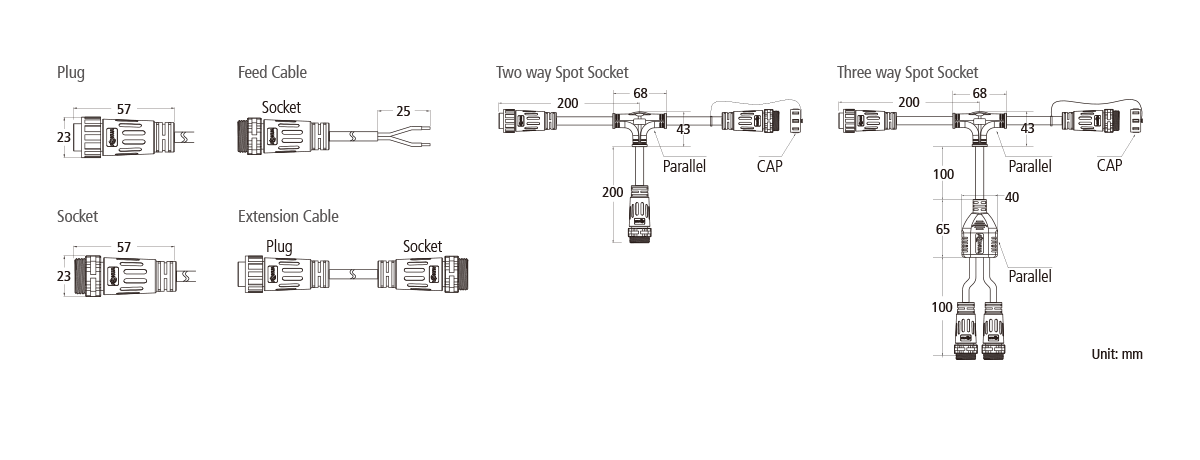

DIMENSIONS

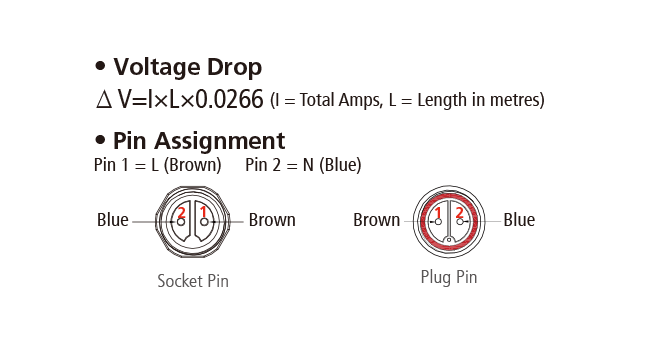

ENGINEERING INSIGHT

DOWNLOADS

DATASHEET
WATERPROOF CONNECTOR

SDOC
Coming soon

INSTALLATION GUIDE
Coming soon

Product Specification

MODEL	GCC/2M FEED CABLE, GCC/10M FEED CABLE, GCC/2M EXTENSION CABLE, GCC/5M EXTENSION CABLE, GCC/10M EXTENSION CABLE, GCC/2WAY SPOT SOCKET, GCC/3WAY SPOT SOCKET
INPUT	230V
IP RATING	IP67
MAX CURRENT(A)	15
DIELECTRIC VOLTAGE(V)	2000
POLES	2
