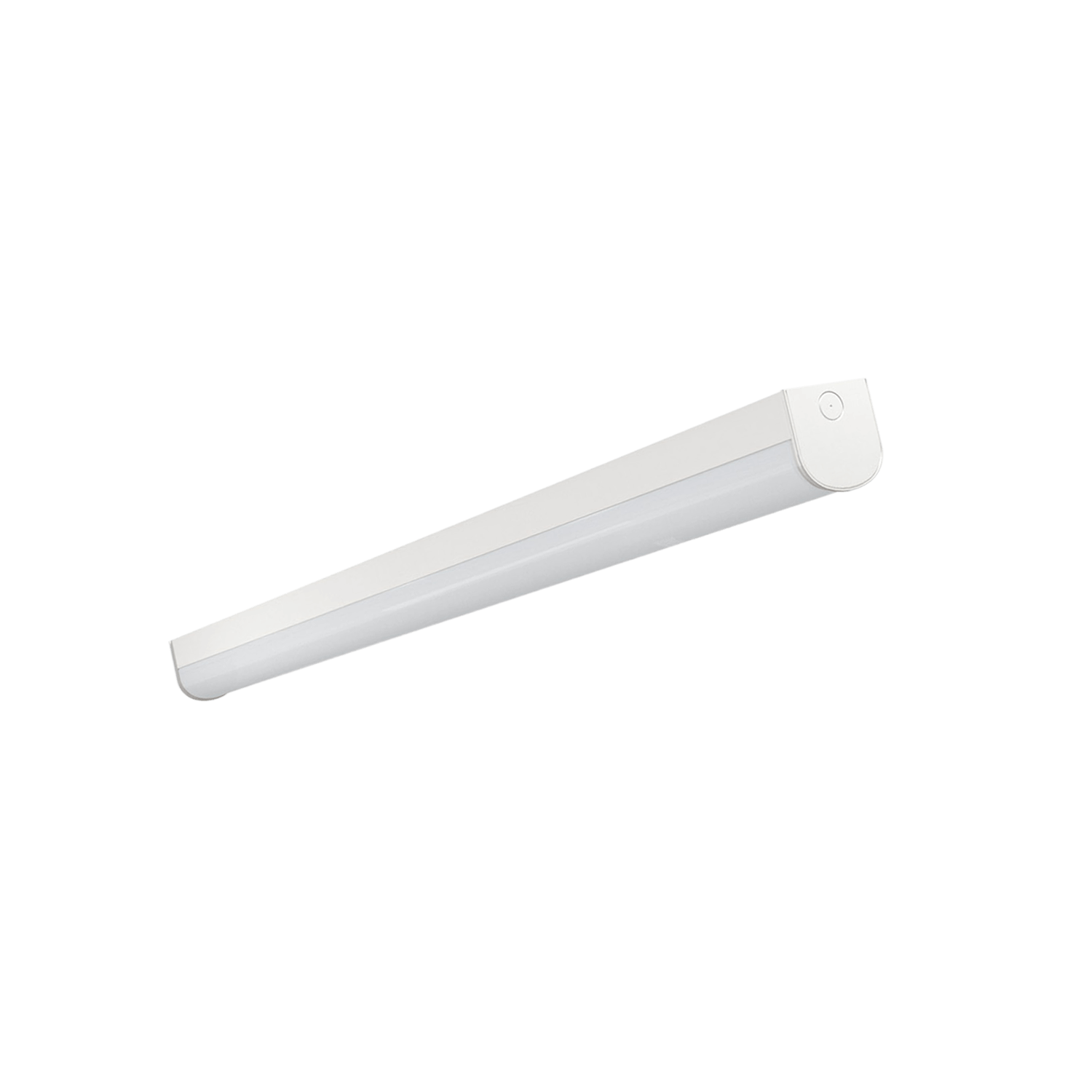

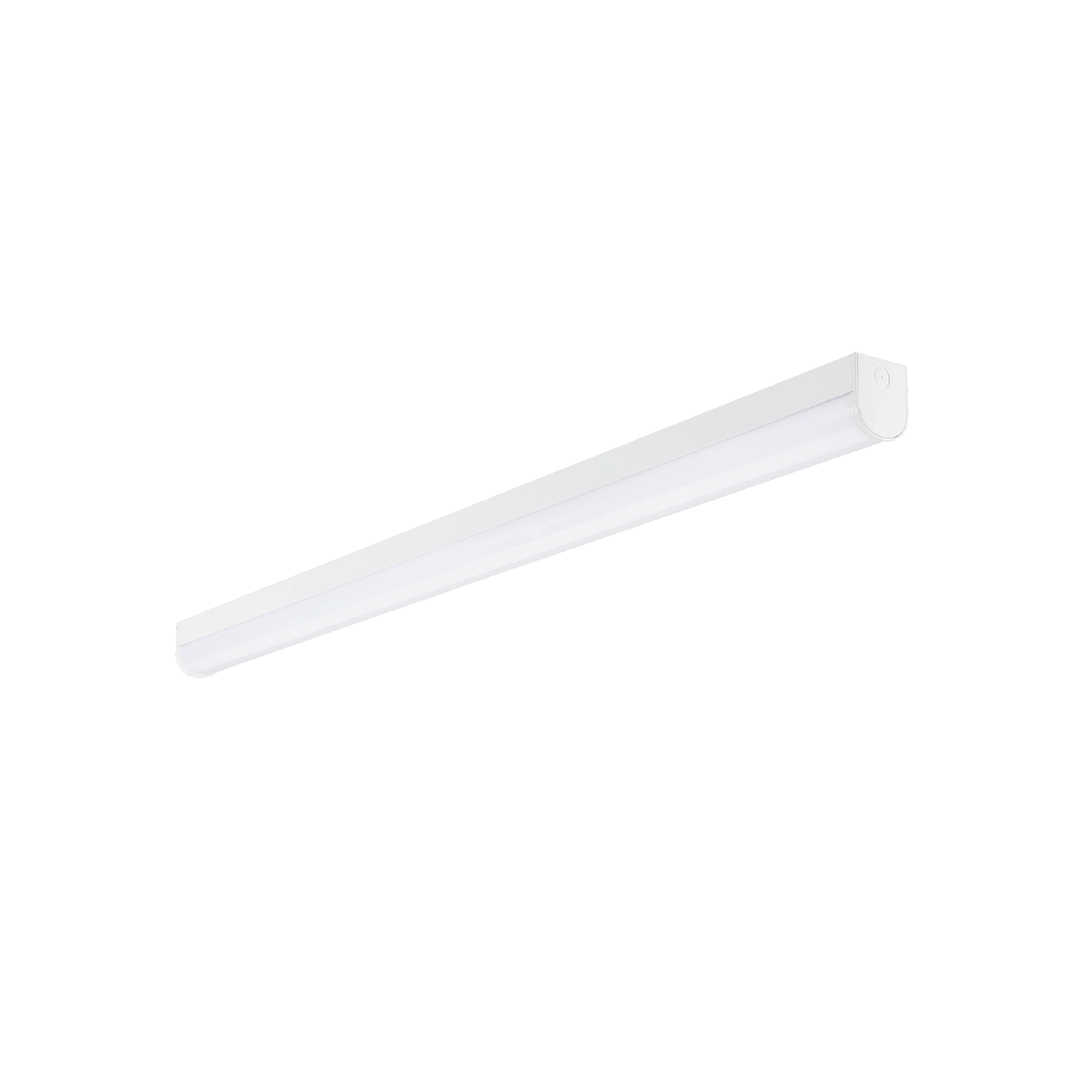

QUANTUM

TRI COLOUR AND DUAL WATTAGE LED BATTEN

GBT508 TC

Pressed steel housing

Powder coated finish

Opal polycarbonate diffuser

Constant current LED driver fitted

Mulitiple cable entrance position

Select colour temperature & wattage with DIP switch

Ta: -20 to +40°C

LED lifespan: 50000 Hours @L70, Ta 25°C

3 year warranty

MODEL

Clear selection

x

SKU: GBT508 Category: BATTEN & UNDER VERANDA LIGHT Tags: CRI>80, Dual Wattage, IP20, Tri-colour in 1

Product Description

CODE

MODEL	INPUT	POWER	LUMEN	COLOUR TEMPERATURE	CRI	BEAM ANGLE	DIMENSIONS (L×W×H)	FITTING COLOUR	CARTON QUANTITY
GBT508/120 TC	230V	20/40W	2200/4400lm	3000/4000/6000K	>80	110°	1135 x 69 x 74mm	White	6
GBT508/150 TC	230V	30/50W	3300/5500lm	3000/4000/6000K	>80	120°	1465 x 69 x 74mm	White	6

DIMENSIONS

FEATURES

DOWNLOADS

DATASHEET
GBT508 TC

PHOTO ARCHIVE
GBT508 TC

SDOC
GBT508 TC

IES
GBT508/120 24W@3000K GBT508/120 24W@4000K GBT508/120 24W@6000K GBT508/120 40W@3000K GBT508/120 40W@4000K GBT508/120 40W@6000K GBT508/150 28W@3000K GBT508/150 28W@4000K GBT508/150 28W@6000K GBT508/150 50W@3000K GBT508/150 50W@4000K GBT508/150 50W@6000K

INSTALLATION GUIDE
GBT508 TC

Product Specification

MODEL	GBT508/120 TC, GBT508/150 TC, GBT508/120 TC IN ChCh, GBT508/150 TC IN ChCh, GBT508/120 TC IN HB, GBT508/150 TC IN HB
KEY FEATURES	ADJUSTABLE WATTAGE, TRI-COLOUR-IN-1
INSTALLATION	SURFACE MOUNTED
INPUT	230-240V(AC)
WATTAGE (W)	20, 30, 40, 50
LUMEN	2200, 3300, 4400, 5500
COLOUR TEMPERATURE	TRI-COLOUR
BEAM ANGLE (°)	110
FITTING COLOUR	WHITE
DIMMABLE	NO
CRI (>)	80
IP RATING	IP20
