MERCURY SMART

RGBCW LED DOWNLIGHT
GDL808 RGBCW GDL851 RGBCW GDL852 RGBCW

Smart LED downlight colour and brightness controlled via Tuya Smart app
Standard RGB control and tunable white, adjustable from 2700K ultra warm white to 6500K daylight
High performance, stable, even light output
Pre-wired for easy installation, plug-in and ready to use
Dimmable diver included
IP44 suitable for indoor use only
IC-F Rating: Abutted & Covered
Double insulation
5-year warranty

MODEL

Clear selection

x

SKU: GDL808 851 852 RGBCW Category: SMART LIGHT Tags: CRI>82, IP44

Product Description

CODE

MODEL NO.	INPUT VOLTAGE (V)	POWER (W)	LUMEN (lm)	COLOUR TEMPERATURE (K)	CRI	BEAM ANGLE (°)	FITTING COLOUR	CARTON QUANTITY
GDL808 RGBCW WH	230	11	“R:80 / G:220 / B:55 2700K: 850 lm / 6500K: 900 lm”	“RGB + C (6500K) / W (2700K)”	>82	100	White	32
GDL851 RGBCW WH	230	11	“R:80 / G:220 / B:55 2700K: 850 lm / 6500K: 900 lm”	“RGB + C (6500K) / W (2700K)”	>82	100	White	32
GDL852 RGBCW WH	230	11	“R:80 / G:220 / B:55 2700K: 850 lm / 6500K: 900 lm”	“RGB + C (6500K) / W (2700K)”	>82	100	White	32

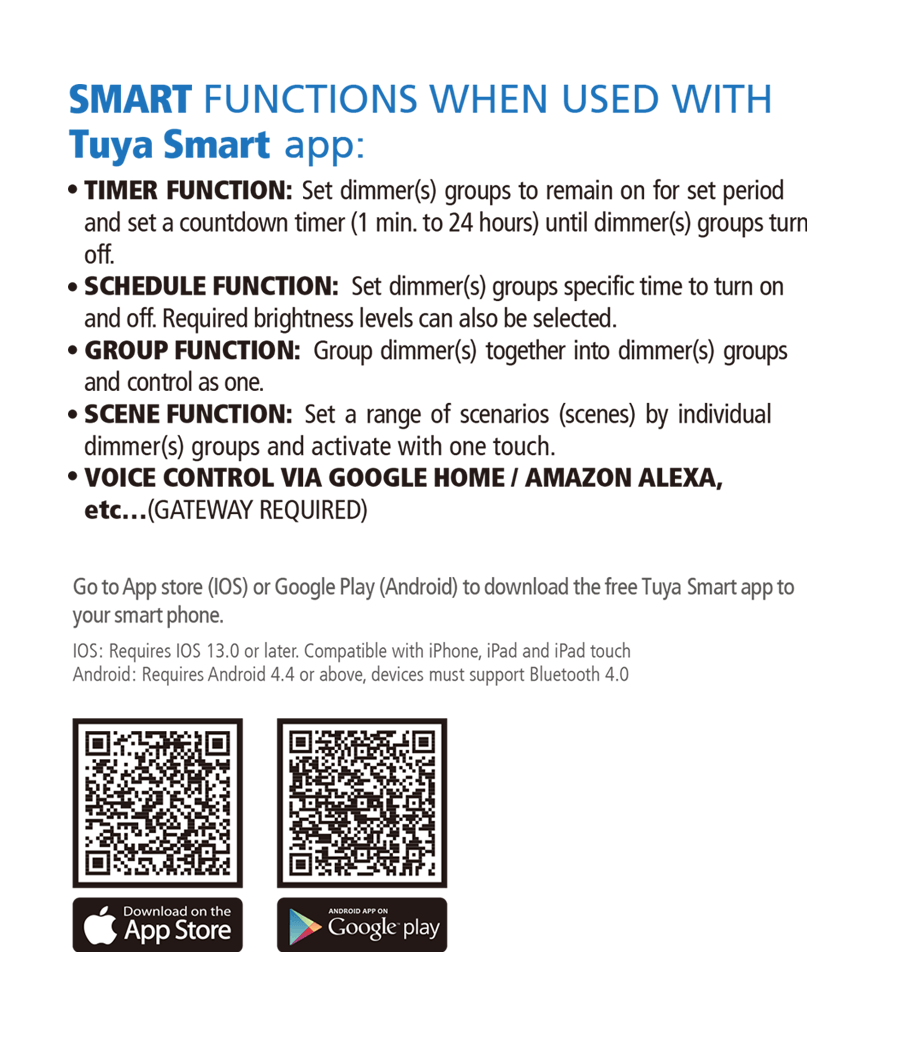

FUNCTIONS

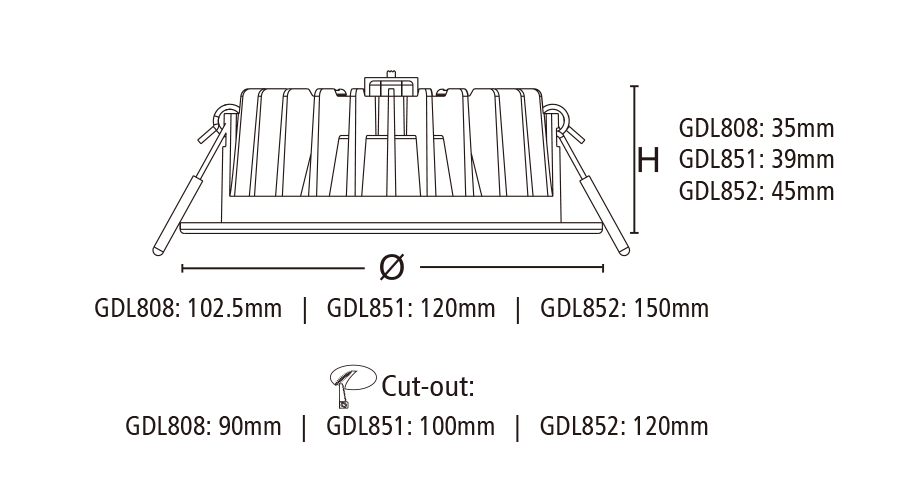

DIMENSIONS

DOWNLOADS

DATASHEET
GDL808/851/852 RGBCW

SDOC
GDL808 RGBCW
GDL851 RGBCW
GDL852 RGBCW

IES
GDL808 RGBCW

INSTALLATION GUIDE
GDL808/851/852 RGBCW

Product Specification

MODEL	GDL808 RGBCW WH, GDL851 RGBCW WH, GDL852 RGBCW WH
KEY FEATURES	SMART
INSTALLATION	RECESSED
INPUT	230-240V(AC)
WATTAGE (W)	11
LUMEN	220, 55, 80, 850, 900
COLOUR TEMPERATURE	DAYLIGHT, RGB, WARM WHITE
BEAM ANGLE (°)	100
FITTING COLOUR	WHITE
DIMMABLE	YES
CRI (>)	80
IP RATING	IP44
FLEX&PLUG	Flex&Plug
IC RATING	IC-F
DOUBLE INSULATION	YES
