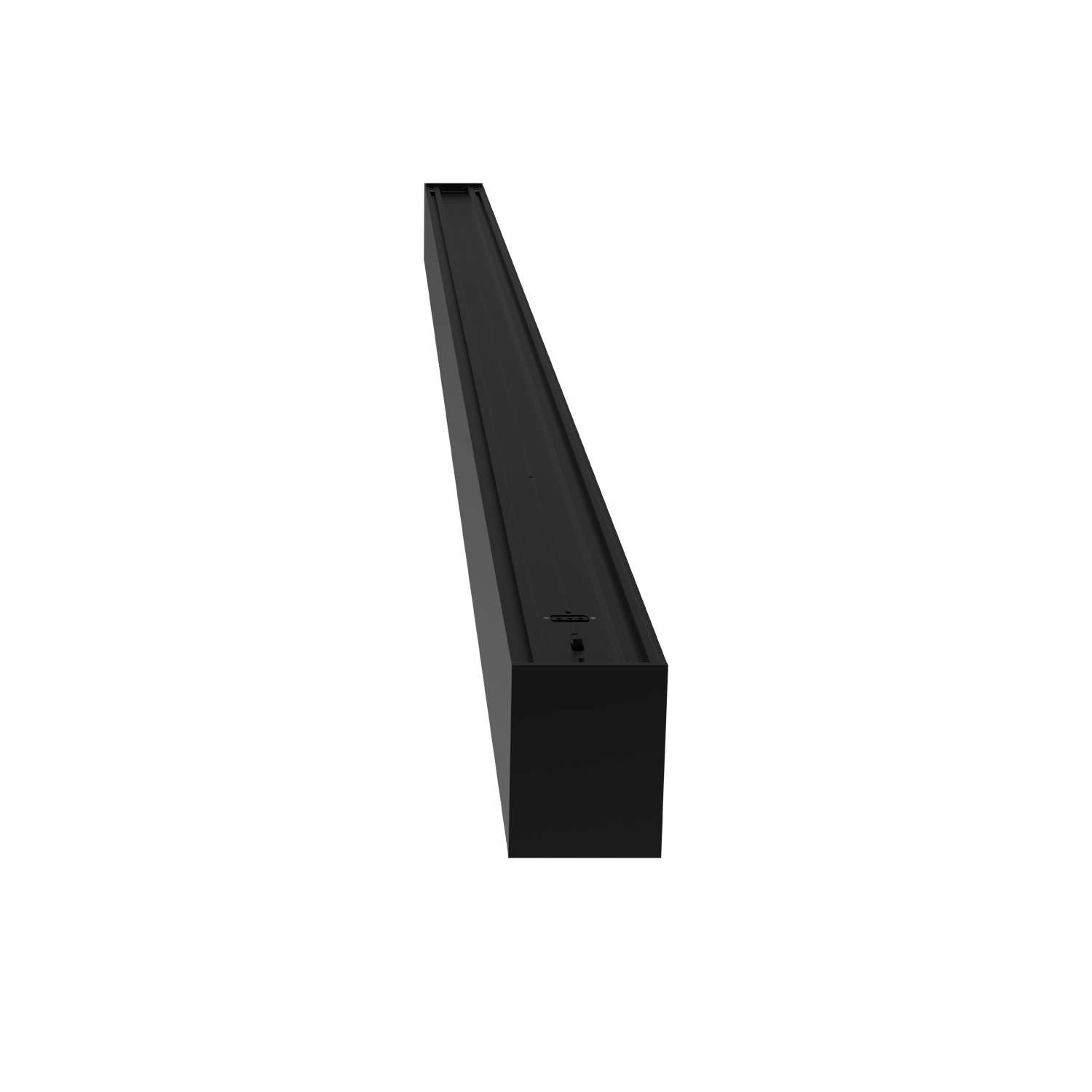

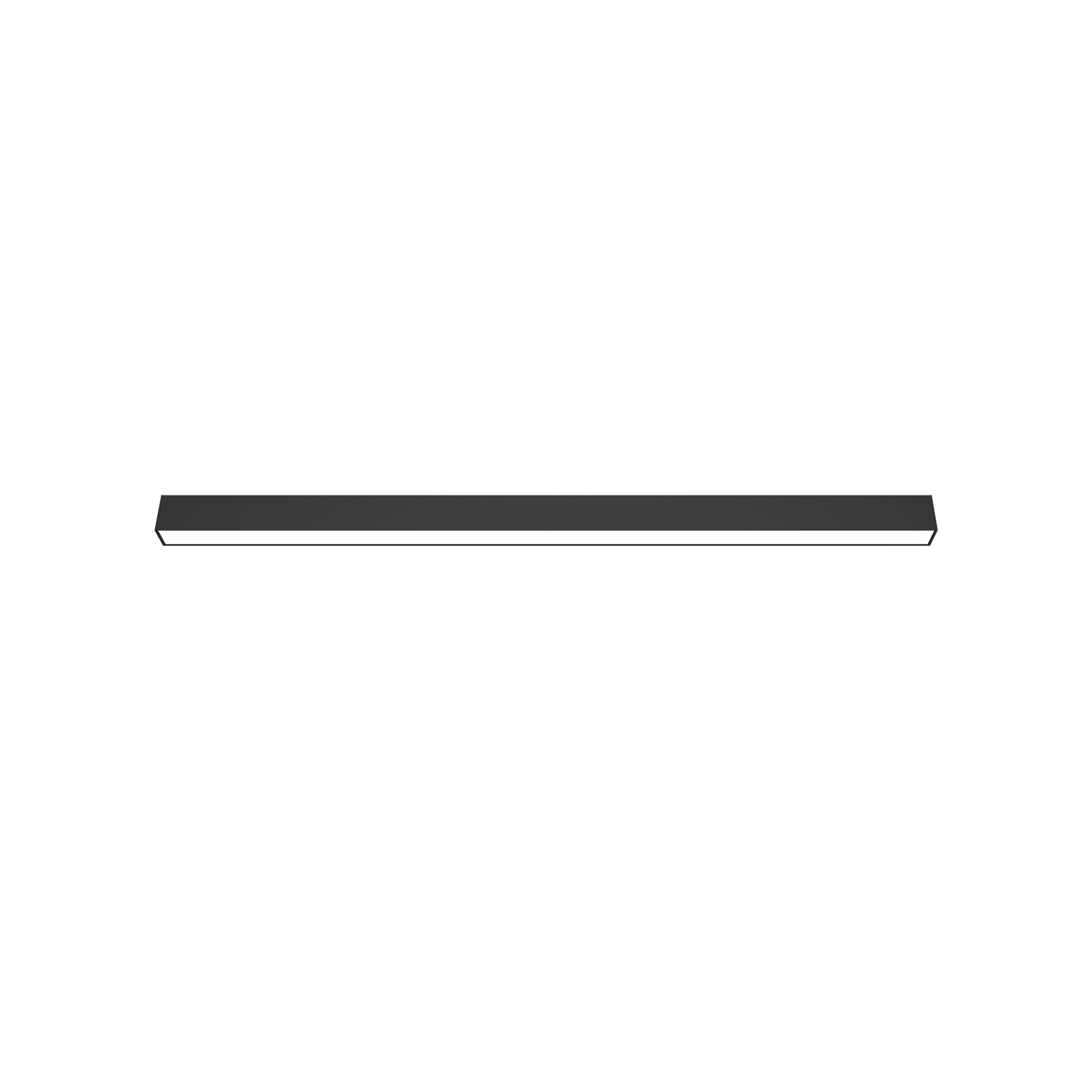

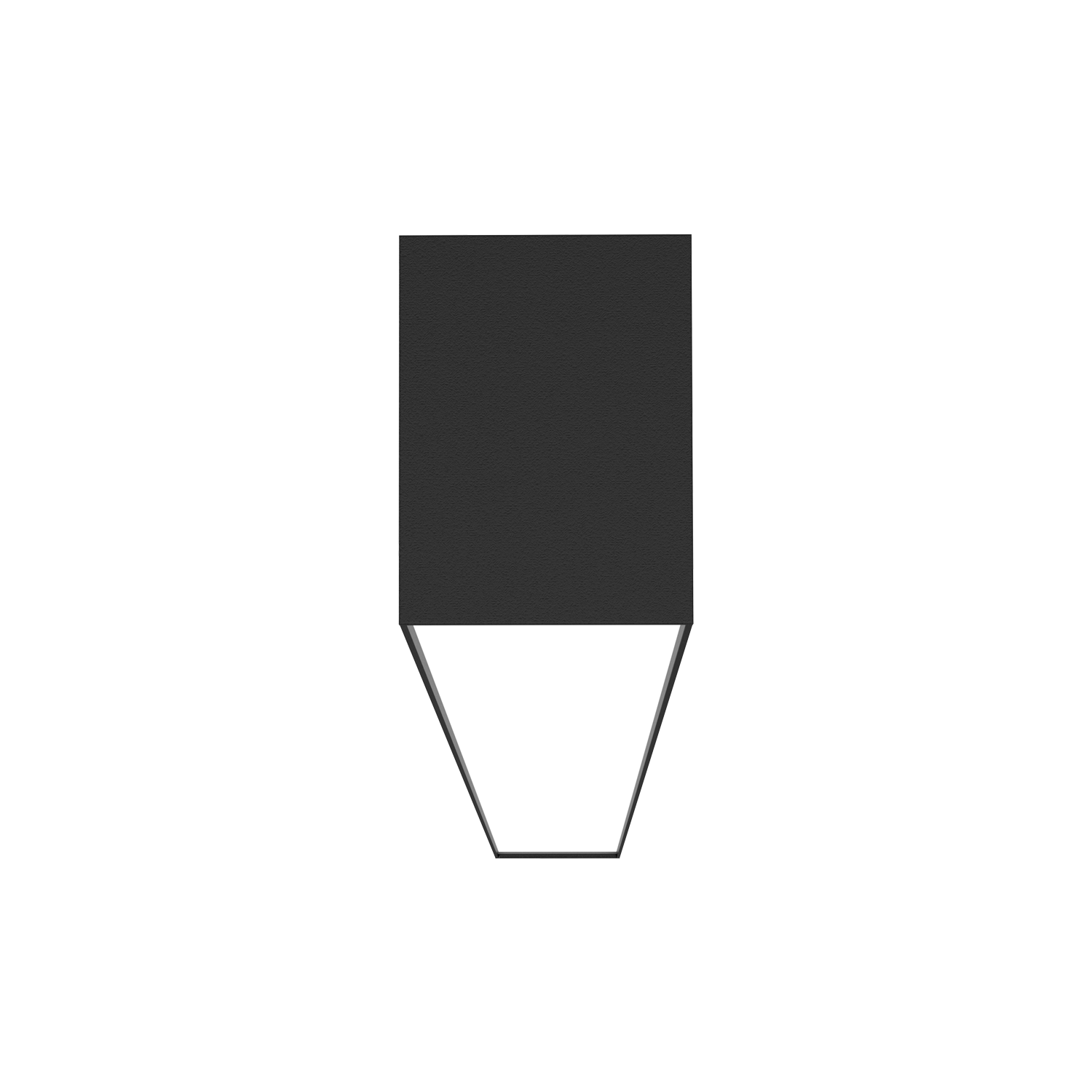

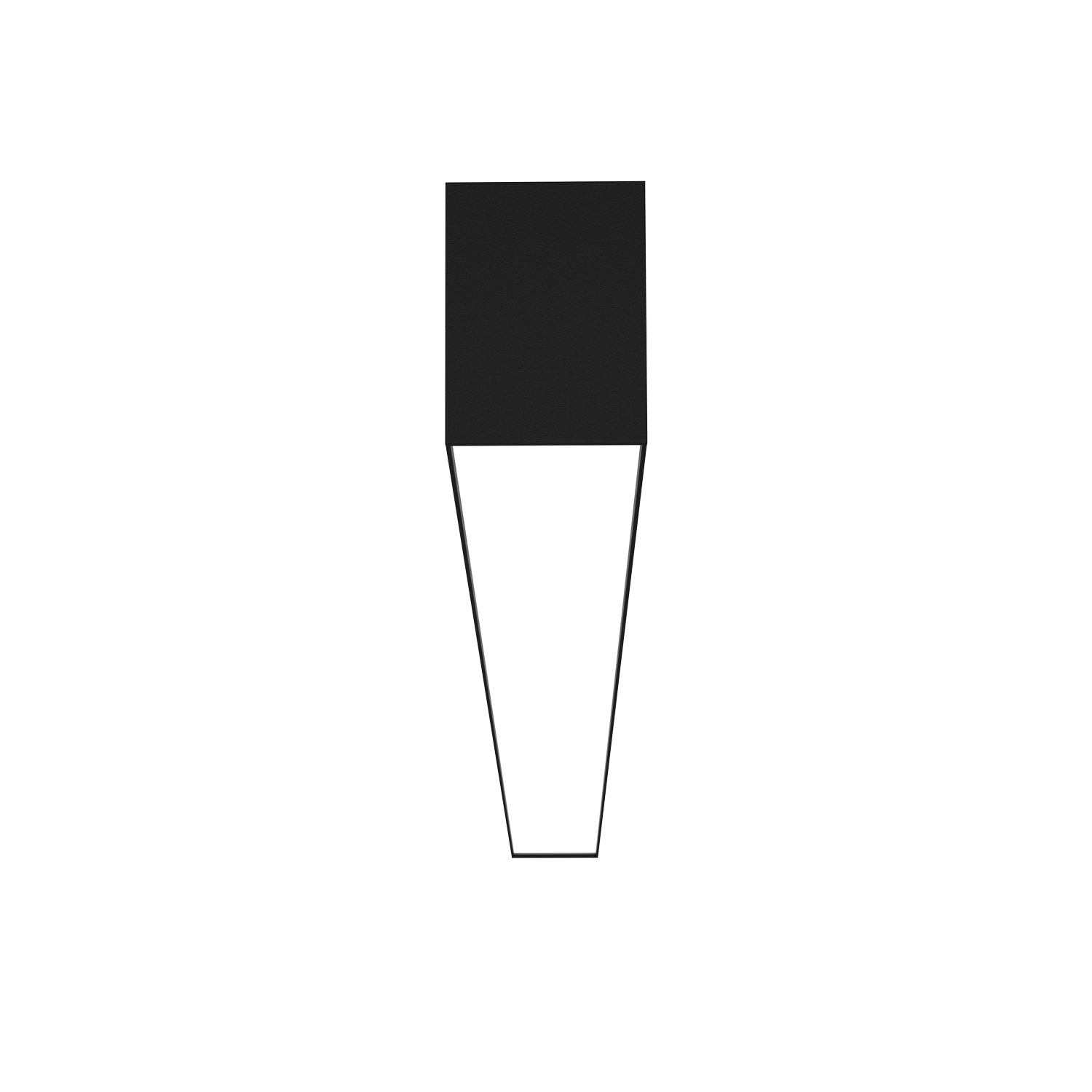

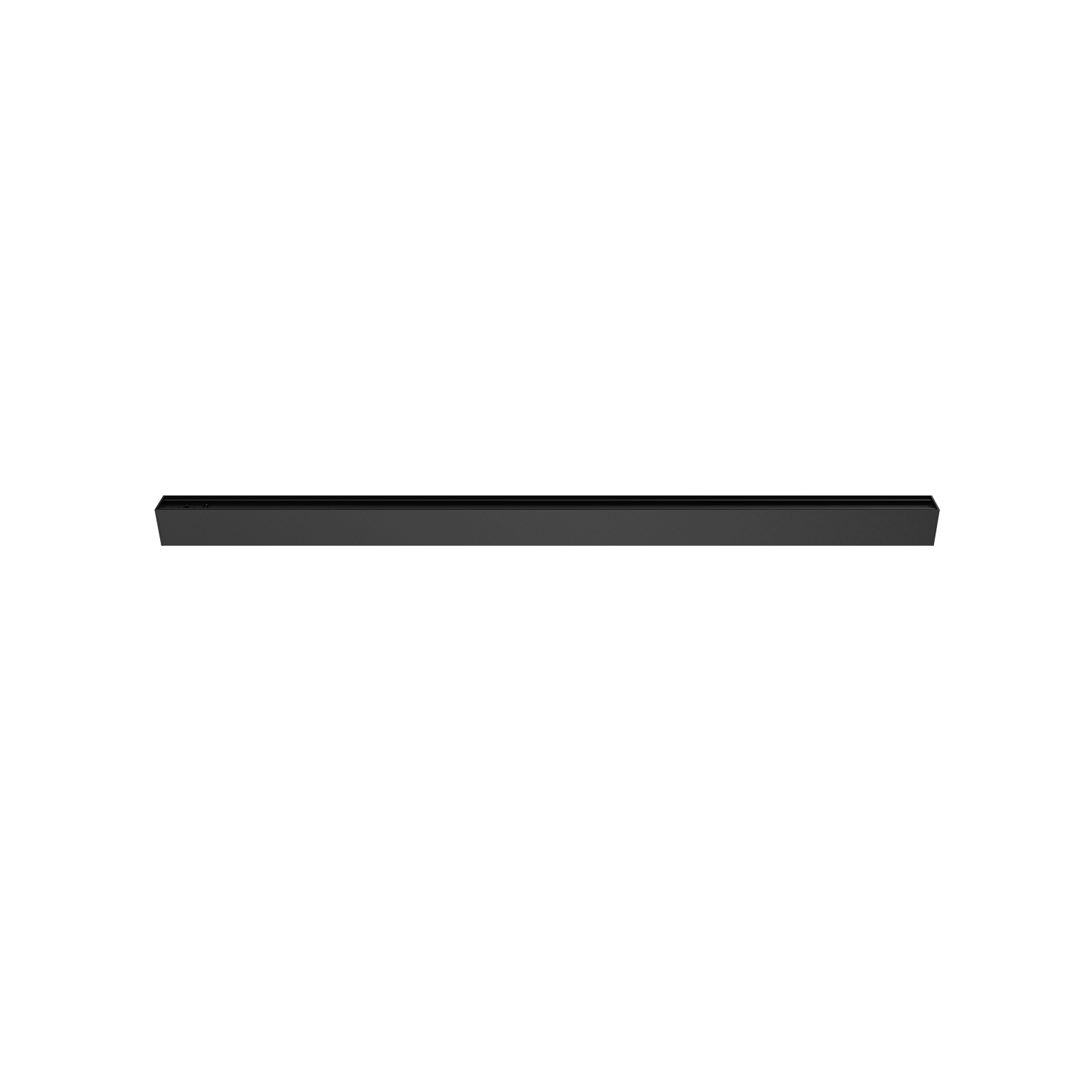

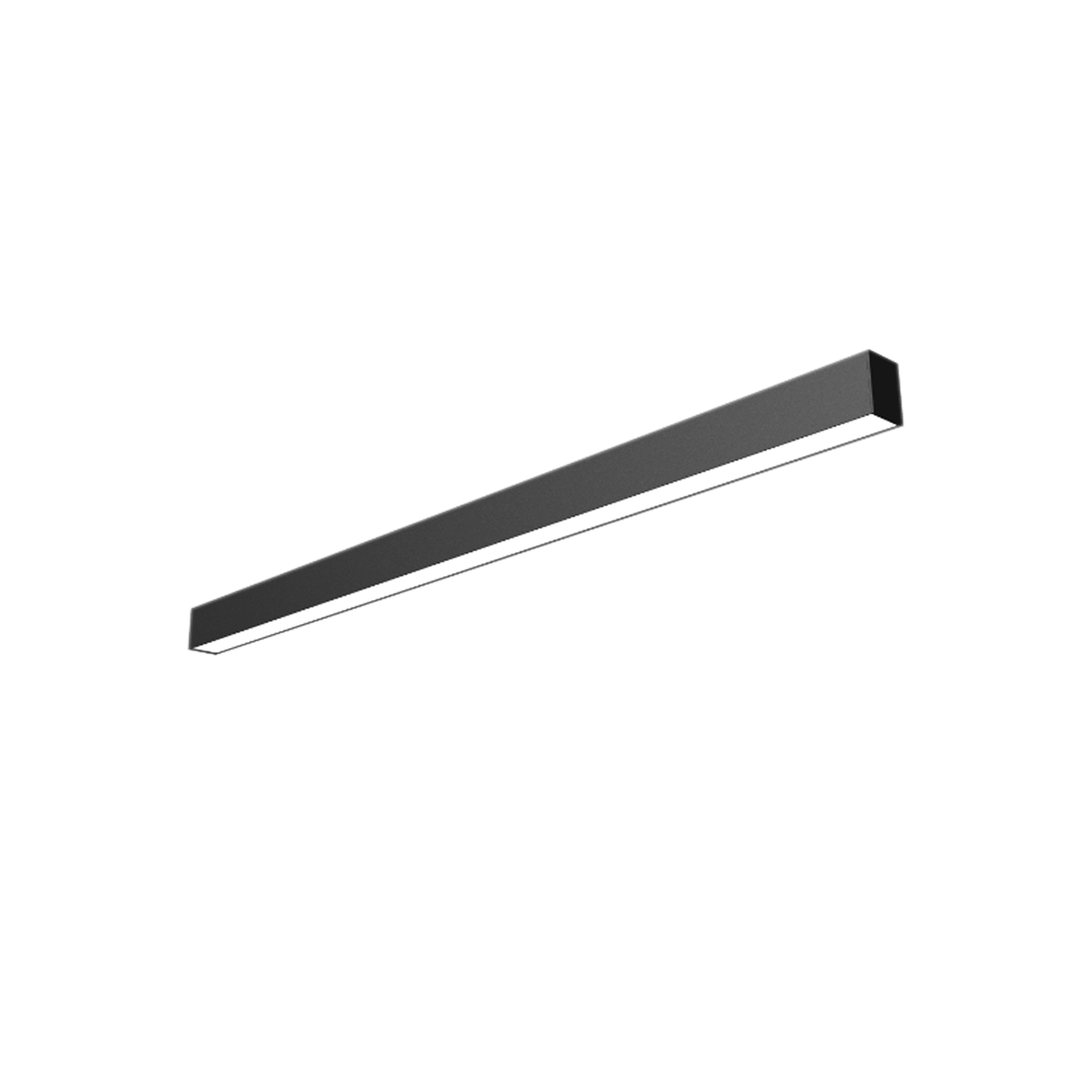

BERKELEY

LINKABLE SURFACE MOUNTED AND SUSPENDED LINEAR LIGHT
GCL754

Extruded aluminium alloy housing
Powder coated finish in sanded black (RAL9005) and sanded white (RAL9003)
Seamless connection without light leakage
High efficiency LED chips 150lm/W @ CRI 90
Colour matching 3 MacAdam steps
LED lifespan: 50000 hours @ L90 B10, Ta 25°C
Ta: -25°C to +40°C

MODEL

Clear selection

x

SKU: GCL754 Category: PROFILE & SUPERMARKET LIGHT Tags: CRI>90, IP20

Product Description

CODE

MODEL NO.	INPUT VOLTAGE (V)	POWER SELECTABLE (W)	LUMEN (lm)	COLOUR TEMPERATURE (K)	CRI	R9	BEAM ANGLE (°)	FITTING COLOUR
GCL754/60 TC BK	230V	11/14/17	1500/2100/2700lm	3000/4000/6000K	>90	80°	600 x 60 x 80 mm	Black
GCL754/120 TC BK	230V	16/21/26W	2400/3150/3900lm	3000/4000/6000K	>90	80°	1200 x 60 x 80 mm	Black
GCL754/150 TC BK	230V	22/27/32W	3300/4050/4800lm	3000/4000/6000K	>90	80°	1500 x 60 x 80 mm	Black
GCL754/300 TC BK	230V	45/55/65W	6750/8250/9750lm	3000/4000/6000K	>90	80°	3000 x 60 x 80 mm	Black
GCL754/60 TC WH	230V	22/27/32W	3300/4050/4800lm	3000/4000/5700K	>90	80°	1200 x 60 x 80 mm	White
GCL754/120 TC WH	230V	22/27/32W	3300/4050/4800lm	3000/4000/5700K	>90	80°	1200 x 60 x 80 mm	White
GCL754/150 TC WH	230V	22/27/32W	3300/4050/4800lm	3000/4000/5700K	>90	80°	1200 x 60 x 80 mm	White
GCL754/300 TC WH	230V	22/27/32W	3300/4050/4800lm	3000/4000/5700K	>90	80°	1500 x 60 x 80 mm	White

DALI VERSION MODEL NO.	POWER(W)	LIGHT OUTPUT(lm)
GCL754/60 TC BK DALI	10/14/18	1500/2100/2700
GCL754/120 TC BK DALI	22/27/32	3300/4050/4800
GCL754/150 TC BK DALI	22/27/32	3300/4050/4800
GCL754/300 TC BK DALI	45/55/65	6750/8250/9750

DALI VERSION MODEL NO.	POWER(W)	LIGHT OUTPUT(lm)
GCL754/60 TC WH DALI	10/14/18	1500/2100/2700
GCL754/120 TC WH DALI	22/27/32	3300/4050/4800
GCL754/150 TC WH DALI	22/27/32	3300/4050/4800
GCL754/300 TC WH DALI	45/55/65	6750/8250/9750

DIMENSIONS

PHOTOMETRIC

OPTIONS

ACCESSORIES

DOWNLOADS

DATASHEET
GCL754 TC

SDOC
GCL754 TC

IES
GCL754 TC

INSTALLATION GUIDE
GCL754 TC DALI

GCL754 TC Non-Dim

Product Specification

MODEL	GCL754/60 TC BK, GCL754/120 TC BK, GCL754/150 TC BK, GCL754/300 TC BK, GCL754/120 TC WH, GCL754/150 TC WH, GCL754/POWER CABLE 3 CORES, GCL754/60 TC BK DALI, GCL754/120 TC BK DALI, GCL754/150 TC BK DALI, GCL754/300 TC BK DALI, GCL754/POWER CABLE DALI, GCL754/CEILING BOX BK, GCL754/CEILING BOX WH, GCL754/SUSPENSION KIT, GCL754/PRISMATIC DIFFUSER
KEY FEATURES	HIGH CRI, LINKABLE, TRI-COLOUR-IN-1
INSTALLATION	SURFACE MOUNTED, SUSPENDED
INPUT	230-240V(AC)
WATTAGE (W)	10, 14, 16, 18, 21, 26, 45, 55, 65
LUMEN	1500, 2100, 2400, 2700, 3150, 3900, 6750, 8250, 9750
COLOUR TEMPERATURE	TRI-COLOUR
BEAM ANGLE (°)	80
FITTING COLOUR	BLACK, WHITE
CRI (>)	90
UGR (<)	19
IP RATING	IP20
FLEX&PLUG	Flex
GLARE CONTROL	Yes
