STARPAD TC

STARPAD TC - Image 2

STARPAD TC - Image 3

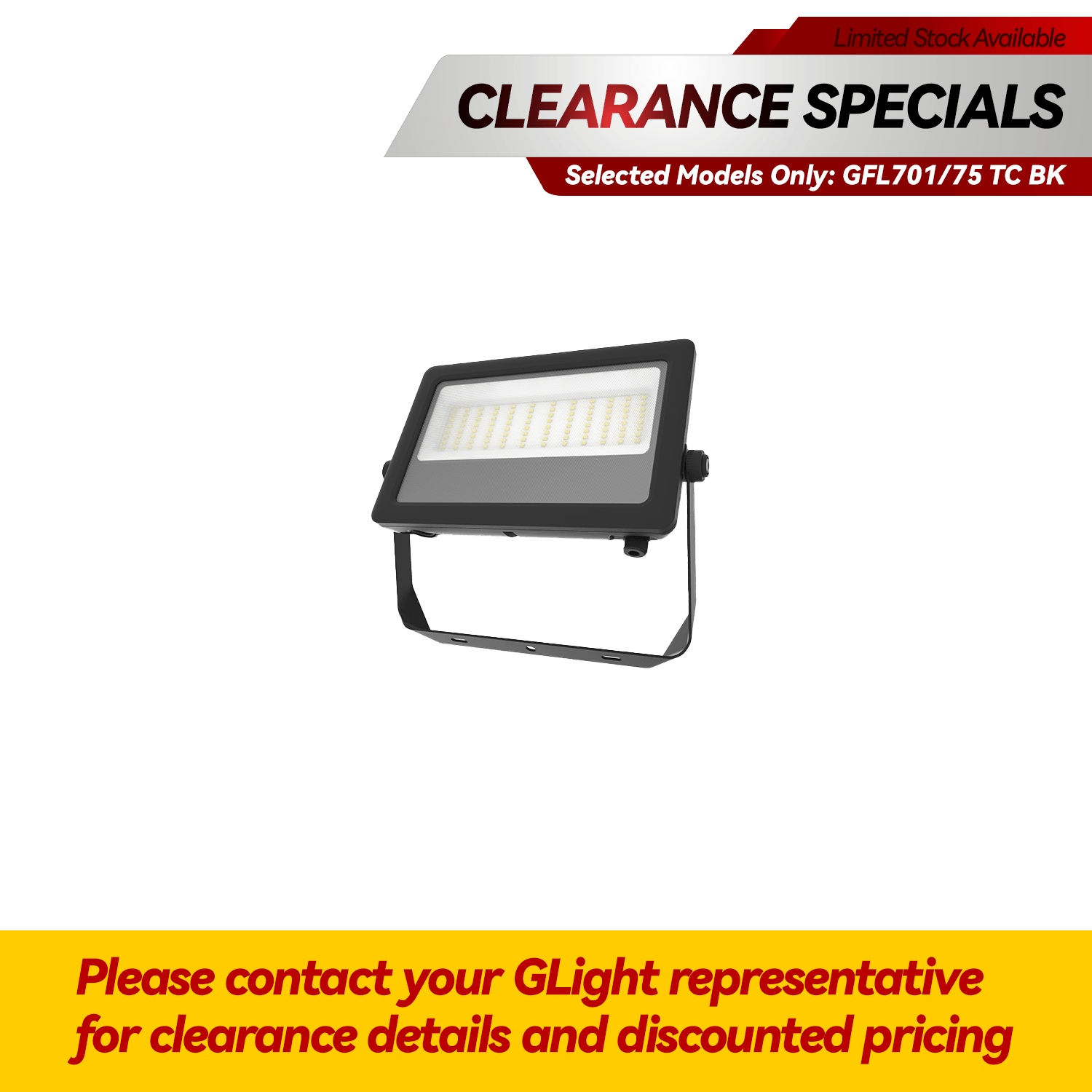

STARPAD TC

Colour temperature selectable LED flood light
GFL701 TC

Select the colour temperature with the integral DIP switch
Die cast aluminium body
Tempered glass front cover
High performance aluminium reflector
Constant current LED driver fitted
0.6M rubber flex & IP67 copper & nickel plated cable gland
Flex included
Non-dimmable
IP65 weatherproof
IK07
Ta: -20°C to +40°C
LED lifespan: 50000 Hours @ L70, Ta 25°C
3 year warranty

MODEL

Clear selection

x

SKU: GFL701 TC Category: FLOOD LIGHT Tags: CRI>80, IK07, IP65

Product Description

CODE

MODEL	INPUT	POWER	LUMEN	COLOUR TEMPERATURE	CRI	BEAM ANGLE	DIMENSIONS (L2×W×H@L1)	NET WEIGHT	FITTING COLOUR	CARTON QUANTITY
GFL701/30 TC BK	230V	30W	2550/3300/2700 lm	3000/4000/5000K	>80	100°	130 x 217 x 40.5mm @ 224	0.83Kg	Black	8
GFL701/50 TC BK	230V	50W	4250/5500/4500 lm	3000/4000/5000K	>80	100°	160 x 270 x 40.5mm @ 271	1.26Kg	Black	8
GFL701/75 TC BK	230V	75W	6900/8250/7150 lm	3000/4000/5000K	>80	100°	205 x 330 x 43.5mm @ 339	2.05Kg	Black	8

DIMENSIONS

TRI-COLOUR IN 1

PHOTOMETRIC DATA

COMING SOON

DOWNLOADS

DATASHEET
GFL701 TC

SDOC
GFL701 TC

IES
GFL701 30 TC 3000K
GFL701 50 TC 3000K
GFL701 70 TC 3000K

INSTALLATION GUIDE
GFL701 TC

Product Specification

KEY FEATURES	TRI-COLOUR-IN-1
MODEL	GFL701/30 TC BK, GFL701/50 TC BK, GFL701/75 TC BK
INSTALLATION	SURFACE MOUNTED
INPUT	230-240V(AC)
WATTAGE (W)	30, 50, 75
LUMEN	2550, 2700, 3300, 4250, 4500, 5500, 6900, 7150, 8200
COLOUR TEMPERATURE	TRI-COLOUR
BEAM ANGLE (°)	100
FITTING COLOUR	BLACK
DIMMABLE	NO
CRI (>)	80
IP RATING	IP65
IK RATING	IK07
FLEX&PLUG	Flex
