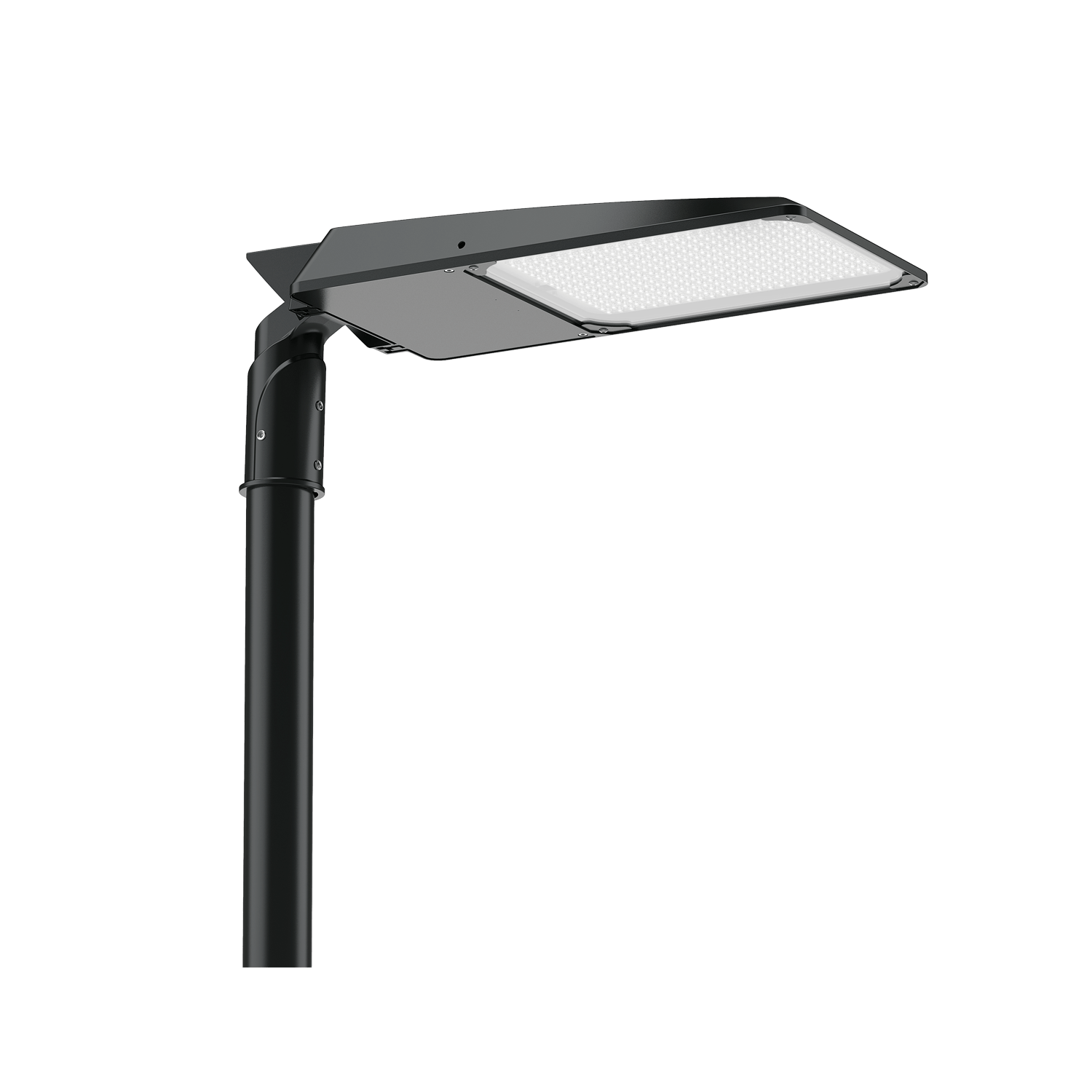

NOVA II

IP66 PREMIUM LED STREET LIGHT

GST700

Aluminium alloy (ADC12) housing
Akzo outdoor powder coated finish in black (RAL9005)
Comes with 60mm spigot, adjustable range 15°
10kV surge protection
1-10V constant current LED driver
Power factor: 0.94
High efficiency LED chips 160lm/W @ 4000K
Lifespan 40000 hours @ L90 B50, 82000 hours @ L80 B50, 131000 hours @ L70 B50, Ta 25°C
Ta: -30°C to +40°C
IP66
IK09
5 years warranty

MODEL

Clear selection

x

SKU: GST700 Category: BOLLARD & POLE MOUNT LIGHT Tags: IK09, IP66

Product Description

CODE

MODEL NO.	INPUT VOLTAGE (V)	POWER (W)	LUMEN (lm)	COLOUR TEMPERATURE (K)	CRI	BEAM ANGLE (°)	FITTING COLOUR	NET WEIGHT (kg)
GST700/30 WW BK	230	30	4650	3000	>70	R01603	Black	3.1
GST700/75 WW BK	230	75	11625	3000	>70	R01603	Black	4.2
GST700/120 WW BK	230	120	18600	3000	>70	R01603	Black	5.2
GST700/185 WW BK	230	185	28675	3000	>70	R01603	Black	5.2
GST700/30 CW BK BS	230	30	4800	4000	>70	R01603	Black	3.2
GST700/75 CW BK BS	230	75	12000	4000	>70	R01603	Black	4.3
GST700/120 CW BK BS	230	120	19200	4000	>70	R01603	Black	5.3
GST700/185 CW BK BS	230	185	29600	4000	>70	R01603	Black	5.3

DIMENSIONS

PHOTOMETRIC DATA

OPTIONS

ACCESSORIES

DOWNLOADS

DATASHEET
GST700

SDOC
GST700

IES
GST700 30 CW
GST700 75 CW
GST700 120 CW

INSTALLATION GUIDE
GST700

Product Specification

MODEL	GST700/30 WW, GST700/75 WW, GST700/120 WW, GST700/185 WW, GST700/20 WW BS, GST700/30 CW BS, GST700/75 CW BS, GST700/120 CW BS, GST700/185 CW BS, GST700/WMADAPTOR, GST700/TWO LIGHTS ADAPTOR, GST700/L ADAPTOR, GST700/SQUARE ADAPTOR, GST700/42 SPIGOT, GST700/76 SPIGOT, GST700/PHOTOCELL
INSTALLATION	SURFACE MOUNTED
INPUT	230V
WATTAGE (W)	120, 30, 75, 185
LUMEN	11625/12000, 18600/19200, 28675/29600, 4650/4800
COLOUR TEMPERATURE	3000, 4000
FITTING COLOUR	BLACK
CRI (>)	70
IP RATING	IP66
IK RATING	IK09
