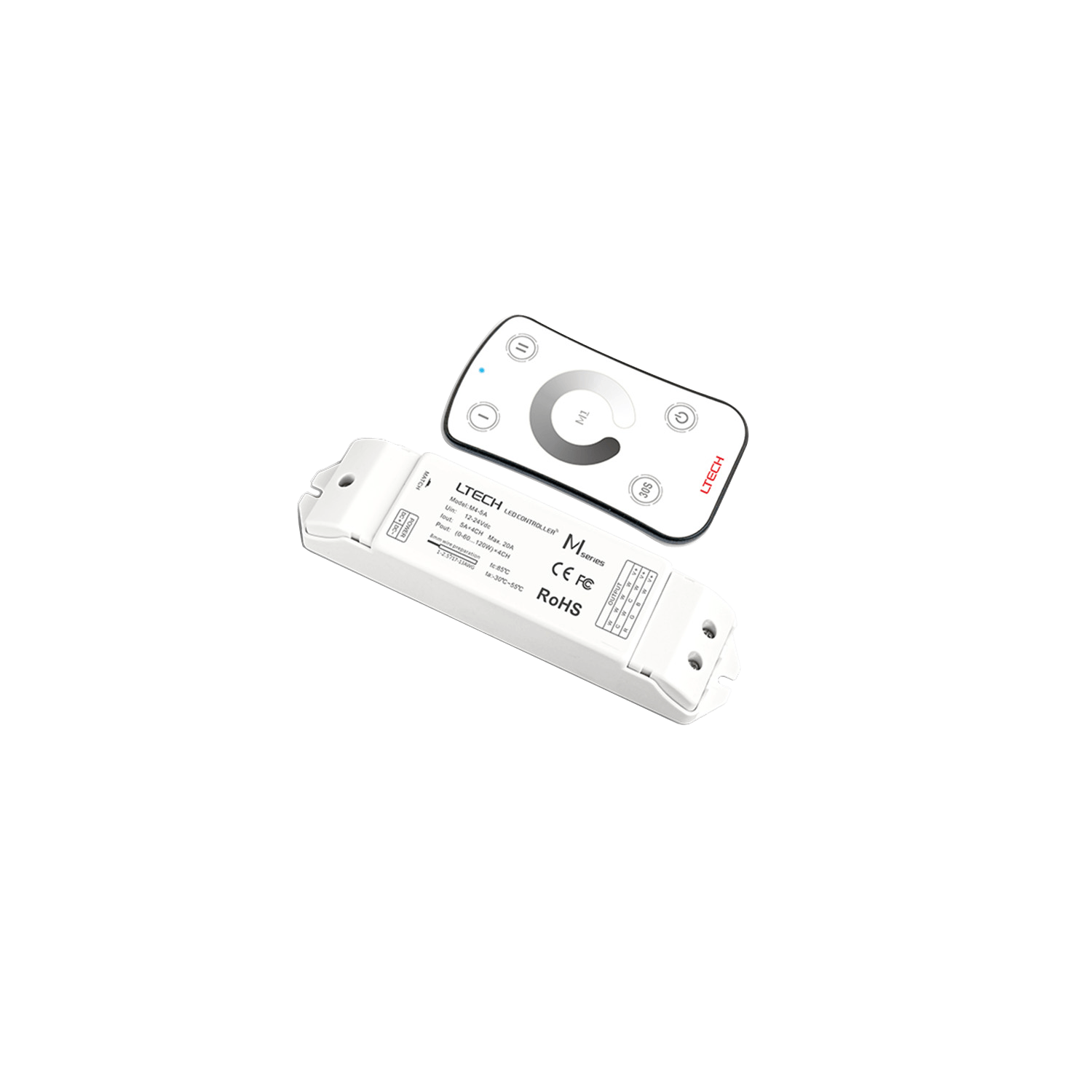

LED CONTROLLER

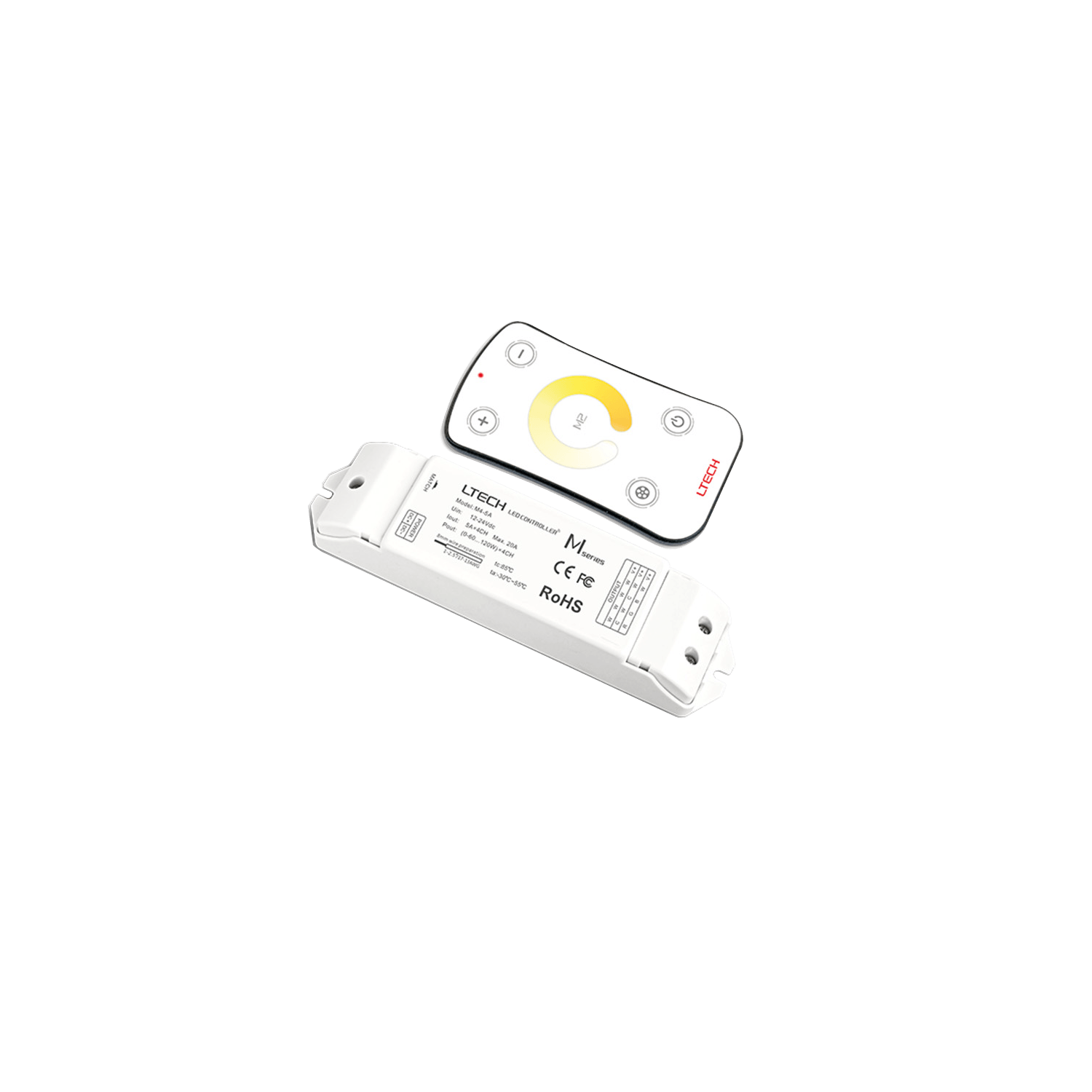

LED CONTROLLER - Image 2

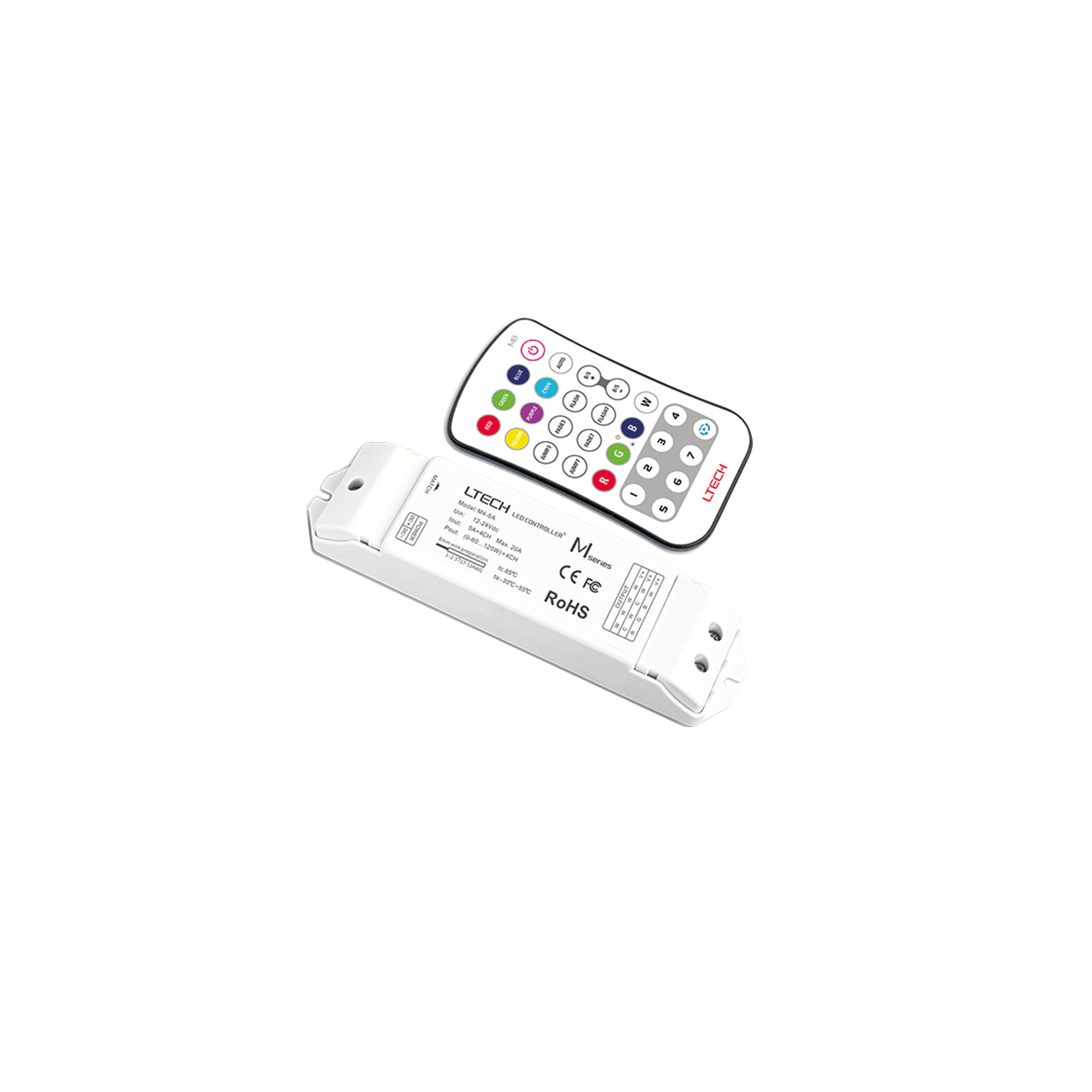

LED CONTROLLER - Image 3

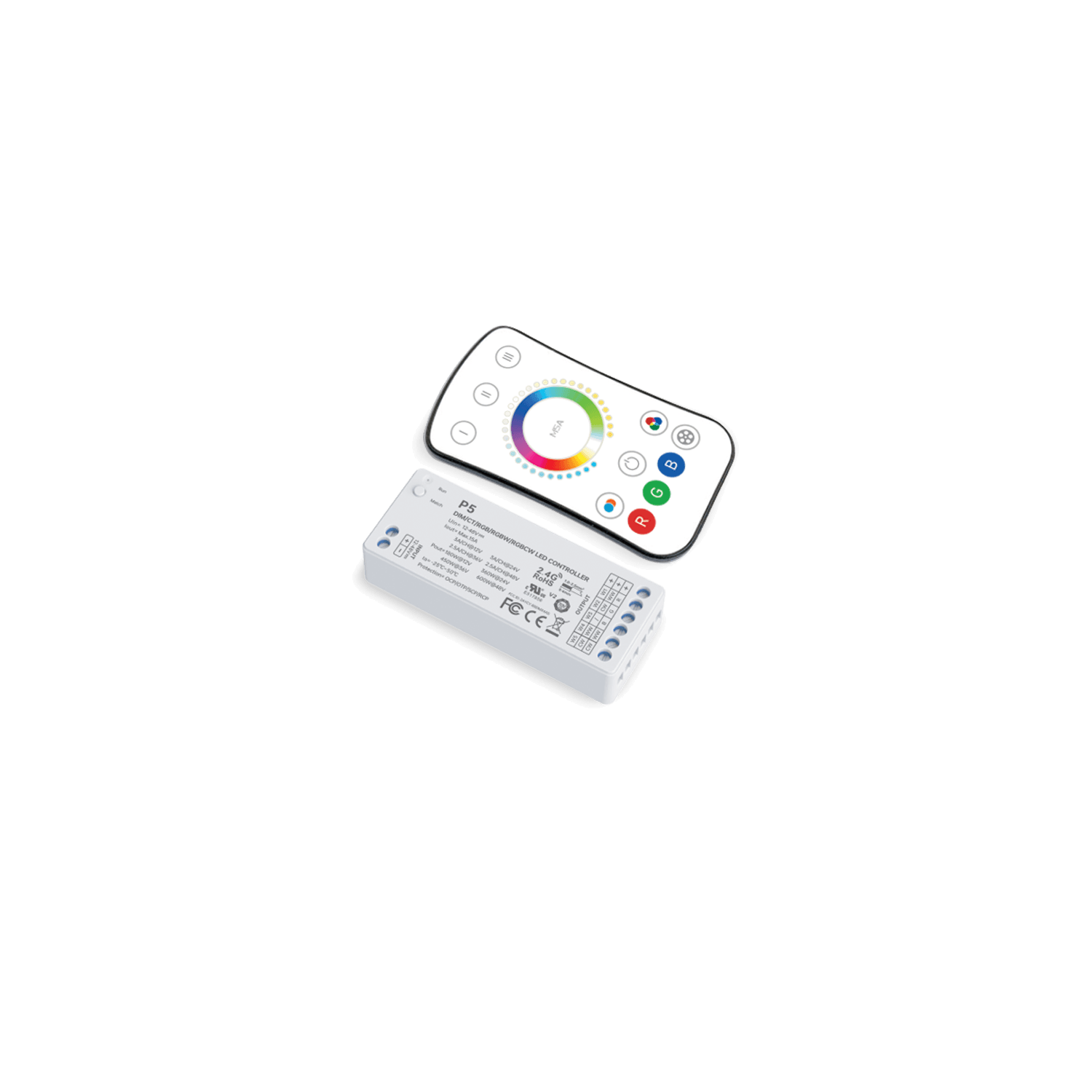

LED CONTROLLER - Image 4

LED CONTROLLER

Login see prices

M1 + M4-5A M2 + M4-5A M8 + M4-5A M5A + P5

Power off memory
Equipped with RF wireless remote controller
Remote distance 30m in open areas
One receiver can be matched with a maximum of 10 remotes
IP20
5-years warrenty

MODEL

Clear selection

x

SKU: LED CONTROLLER Category: LED STRIP & NEON FLEX Tags: CONTROLLER, Remote

Product Description

CODE

MODEL NO.	INPUT/OUTPUT VOLTAGE (V)	MAX OUTPUT CURRENT (A)	MAX OUTPUT POWER (W)
M1+M4-5A	12-24(DC)	5A x 4 channel	480W@24V / 240W@12V
M2+M4-5A	12-24(DC)	5A x 4 channel	480W@24V / 240W@12V
M8+M4-5A	12-24(DC)	5A x 4 channel	480W@24V / 240W@12V
M5A+P5	12-48(DC)	15A x 5 channel	180W@12V / 360W@24V / 450W@36V / 600W@48V

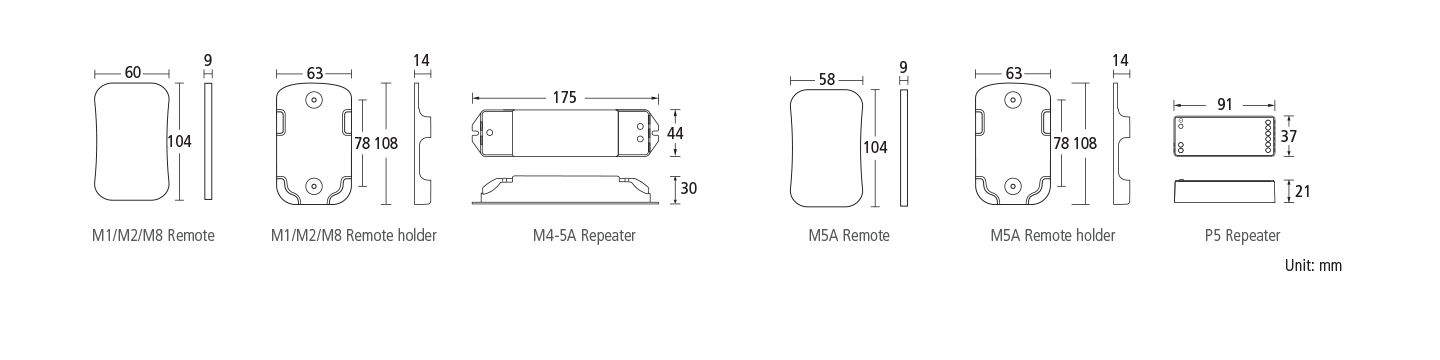

DIMENSIONS

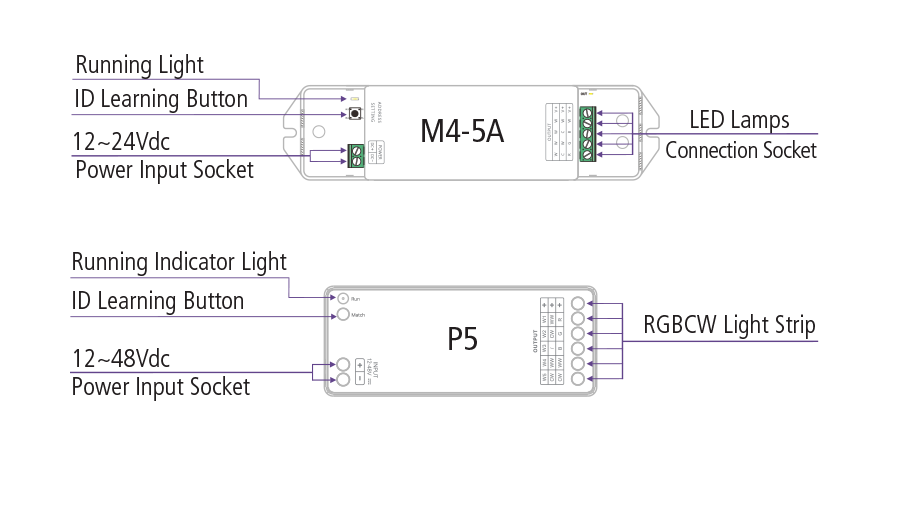

WIRING DIAGRAM

DOWNLOADS

DATASHEET
LED CONTROLLER

SDOC
COMING SOON

INSTALLATION GUIDE
M1+M4-5A M2+M4-5A M4-M8+M4-5A

Product Specification

MODEL	M1+M4-5A, M2+M4-5A, M8+M4-5A, M5A+P5
INPUT	12-24(DC), 12-48(DC)
WATTAGE (W)	180, 240, 360, 450, 480, 600
IP RATING	IP20
OUTPUT CURRENT	15A × 5 channel, 5A x 4 channel
ADD FEATURES	ROMOTE
