| MODEL NO. | INPUT VOLTAGE (V) | POWER (W/m) | LUMEN (lm/m) | COLOUR TEMPERATURE (K) | CRI | R9 | BEAM ANGLE (°) | LED QUANTITY |
|---|---|---|---|---|---|---|---|---|
| GHR2508 2700K | 24(DC) | 8 | 810 | 2700 | >90 | 45 | 180 | 320/m |
| GHR2508 WW | 24(DC) | 8 | 810 | 3000 | >90 | 45 | 180 | 320/m |
| GHR2508 CW | 24(DC) | 8 | 840 | 4000 | >90 | 45 | 180 | 320/m |
| GHR2508 DL | 24(DC) | 8 | 845 | 6000 | >90 | 45 | 180 | 320/m |
| GHR2508 2700K IP67 | 24(DC) | 8 | 810 | 2700 | >90 | 45 | 180 | 320/m |
| GHR2508 WW IP67 | 24(DC) | 8 | 810 | 3000 | >90 | 45 | 180 | 320/m |
| GHR2508 CW IP67 | 24(DC) | 8 | 840 | 4000 | >90 | 45 | 180 | 320/m |
| GHR2508 DL IP67 | 24(DC) | 8 | 845 | 6000 | >90 | 45 | 180 | 320/m |
| MODEL | GHR2508 WW, GHR2508 CW, GHR2508 DL, GHR2508 2700K IP67, GHR2508 WW IP67, GHR2508 CW IP67, GHR2508 DL IP67 |
|---|---|
| INPUT | 24V (DC) |
| WATTAGE (W) | 08 |
| LUMEN | 720, 760, 840, 845, 810 |
| COLOUR TEMPERATURE | 2700, 3000, 4000, 6000 |
| BEAM ANGLE (°) | 180 |
| CRI (>) | 90 |
| IP RATING | IP20, IP67 |

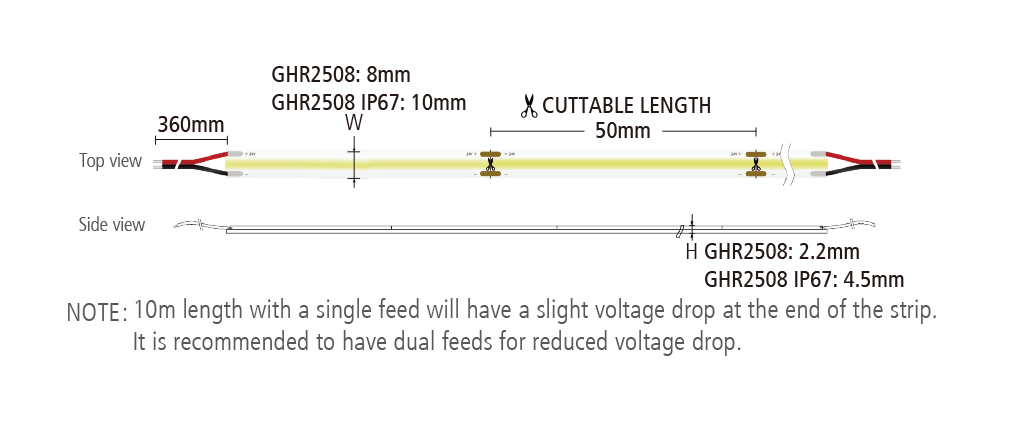

| CUTTABLE LENGTH (mm) | 50mm |
| LED/METRE (pc/m) | 320 |
